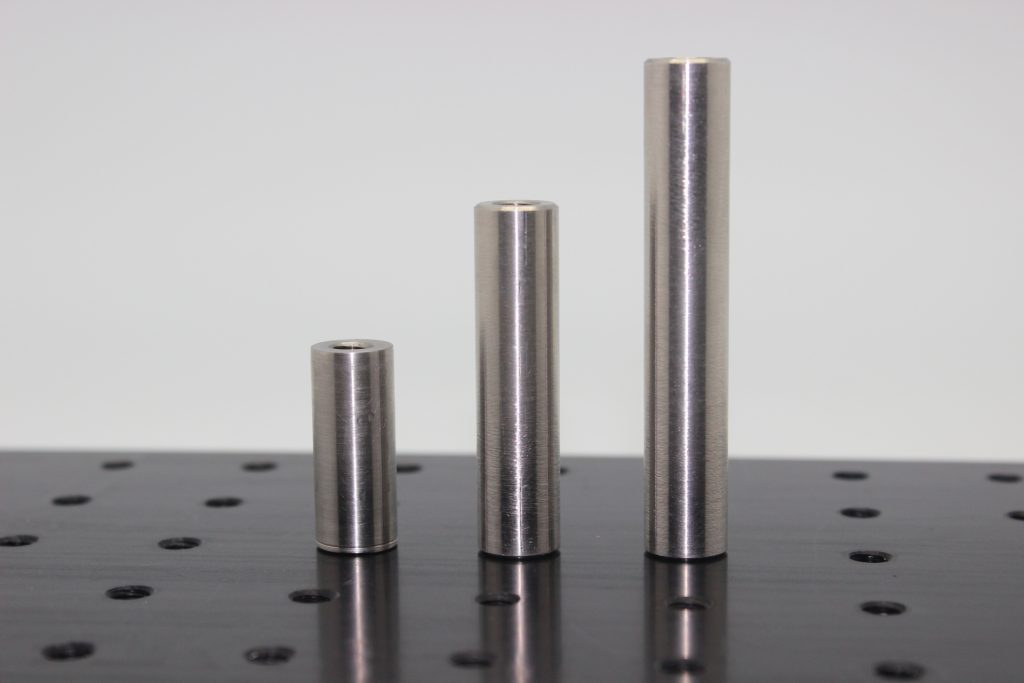

Post (SS dia 12)

Made of high quality steel by precision grinding & good appearance. We can mount & lock the components at desired position

Available Sizes

Model No

50mm Length

OM-P-50

60mm Length

OM-P-60

75mm Length

OM-P-75

100mm Length

OM-P-100

125mm Length

OM-P-125

150mm Length

OM-P-150

Product Specification

  • Stainless steel alloy construction
  • Dia-12mm precision turned finish
  • M6 Tapped holes on both ends
  • Compatible with 12mm Post Holder system

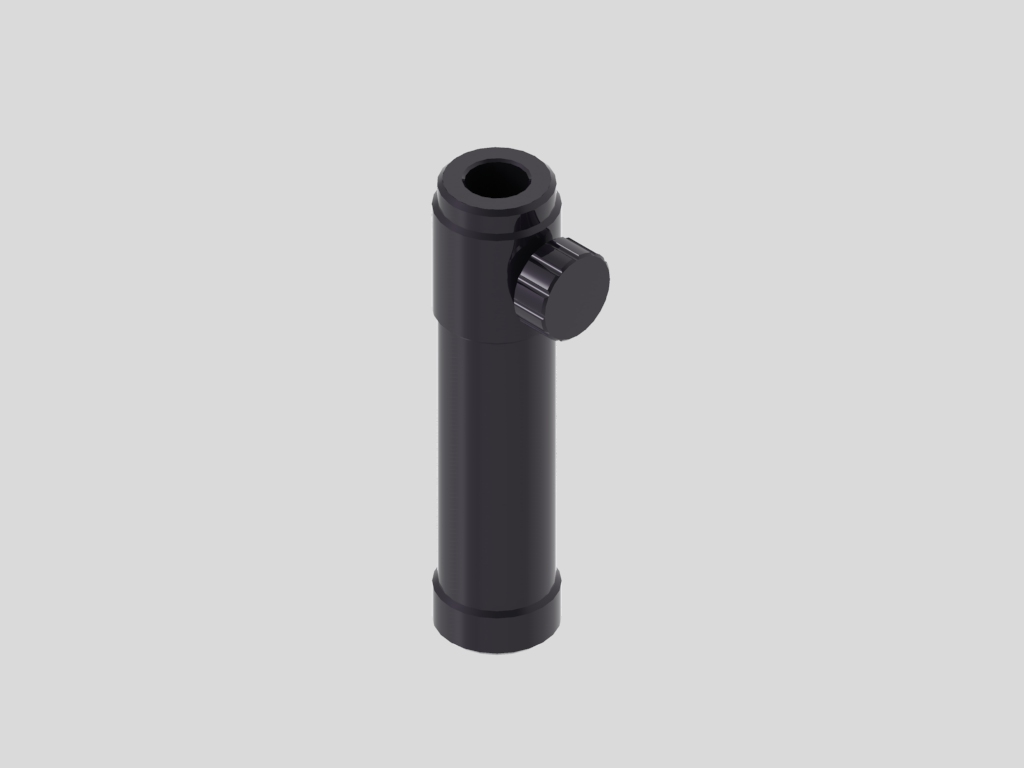

Post Holder (For SS post)

Made of aluminium, Support posts can be fixed @ different heights & locked by spring loaded thumbscrew Post holder has a tapped hole on bottom end for fixation on breadboard or base

Available Sizes

Model No

50mm Length

OM-PH-50

60mm Length

OM-PH-60

75mm Length

OM-PH-75

100mm Length

OM-PH-100

125mm Length

OM-PH-125

150mm Length

OM-PH-150

Product Specification

  • Aluminum alloy construction
  • M6 Tap mounting hole @ bottom
  • Nylon tipped Thumbscrew
  • Black anodized finish

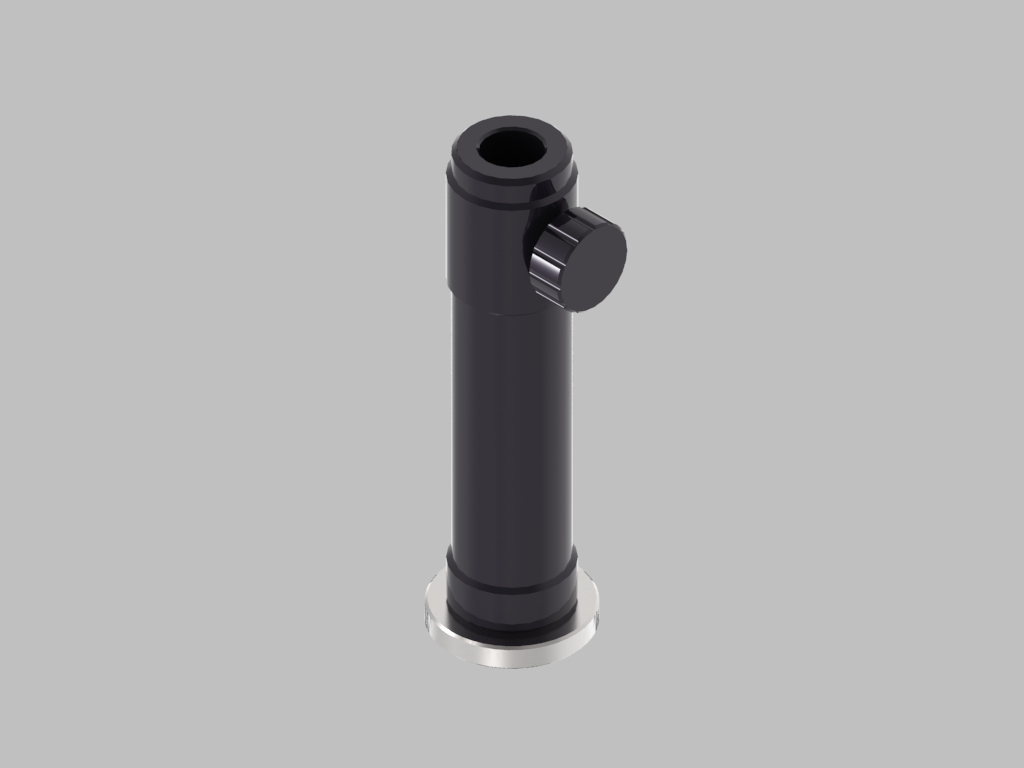

Pedestal Post Holder (For SS post)

Made of aluminium, Pedestal post holder can fix anywhere on the breadboard or any base with the help of clamping fork. It will increase the stability of post holder.

Available Sizes

Model No

50mm Length

OM-PPH-50

60mm Length

OM-PPH-60

100mm Length

OM-PPH-100

125mm Length

OM-PPH-125

150mm Length

OM-PPH-150

Product Specification

  • Aluminum alloy construction
  • Pedestal base for mounting
  • M6 Tap mounting hole @ bottom
  • Nylon tipped Thumbscrew
  • Black anodized finish

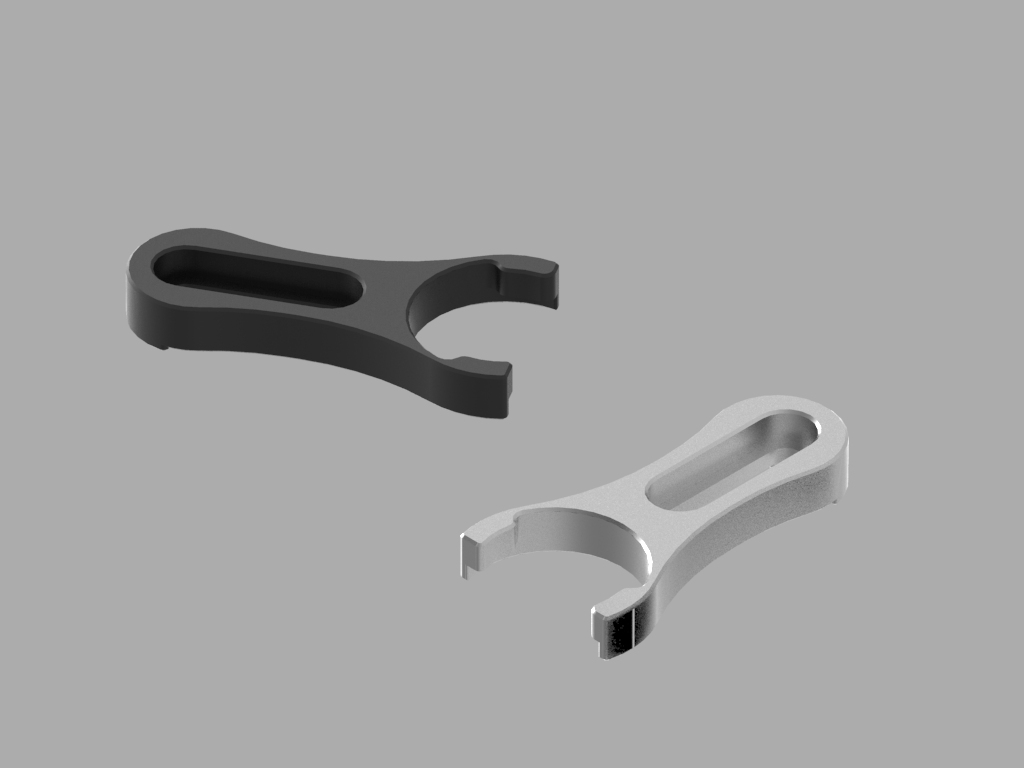

Clamping Fork / Pedestal Fork

Clamping fork with pedestal allows us to mount components in any position on optical table

Available Sizes

Model No

Aluminum made-75mm L

OM-CF-75

Aluminum made-100mm L

OM-CF-100

Stainless Steel made-75mm L

OM-CF-75SS

Stainless Steel made-100mm L

OM-CF-100SS

Product Specification

  • Aluminum alloy construction
  • M6 C’Bore Slot for mounting
  • 9mm thick plate
  • Black anodized finish
  • Clamping forks are available on Stainless steel material with sand blasted finish on request

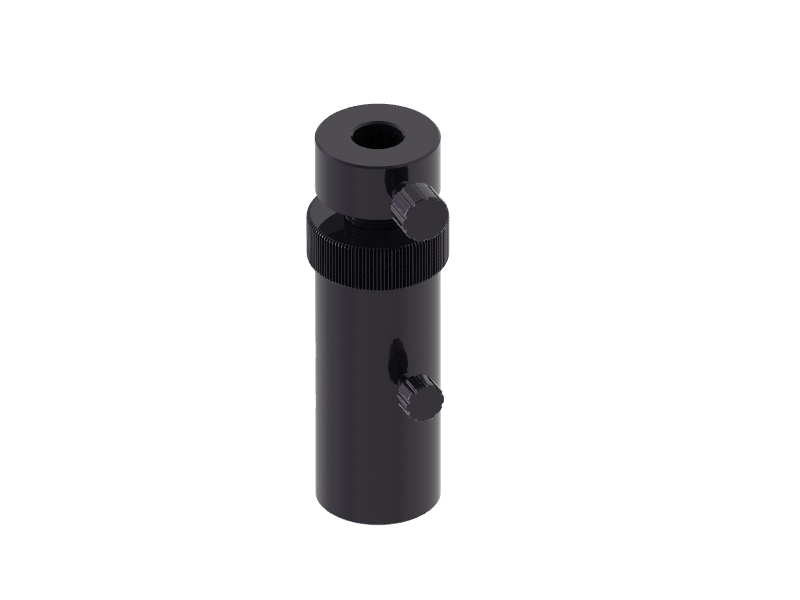

Translating Post Holder

Translating Post Holders provide non rotating height adjustment by a knurled rotating thimble. Adjustment range is +/-7.5mm

Available Sizes

Model No

75mm Length +/- 7.5mm

OM-TPH-75

100mm Length +/- 7.5mm

OM-TPH-100

125mm Length +/- 7.5mm

OM-TPH-125

Product Specification

  • Aluminum alloy construction
  • 7.5mm +/- Height adjustment
  • M6 Tap mounting hole @ bottom
  • Black anodized finish

Post Bases

The post base allows more flexibility in positioning post and post holder. It can be fixed at any position on optical table.

Available Sizes

Model No

75 x 30 x 9 (U-Type)

OM-PB-7530

75 x 25 x 9 (H-Type)

OM-PB-7525

65 x 50 x 9 (Rectangular Type)

OM-PB-6550

75 x 30 x 9 (U-Type) with Magnet

OM-PB-7530M

75 x 25 x 9 (H-Type) with Magnet

OM-PB-7525M

65 x 50 x 9 (Rectangular Type) with Magnet

OM-PB-6550M

100 x 70 x 18 (XY-with Slots base)

OM-XYPB-100

100 x 70 x 18 (XY-with Slots base) with Magnet

OM-XYPB-100M

Product Specification

  • Aluminum alloy construction
  • M6 CLR Slot for mounting
  • 9mm thick plate
  • 18mm thick plate (Only for XY Series)
  • Black anodized finish

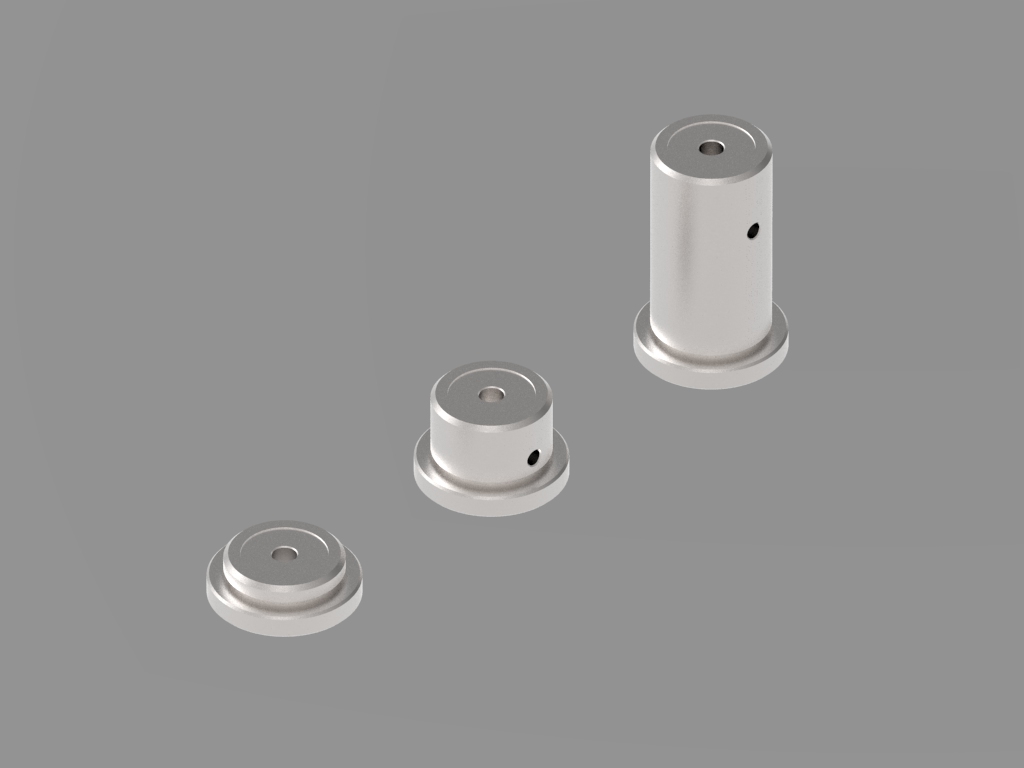

Pedestal Post (Dia 25mm / 1 inch)

The fixed-height pedestals ensure more significant stability then conventional post system due to their larger diameters and increased stiffness

Available Sizes

Model No

25mm Length

OM-PP-25

50mm Length

OM-PP-50

100mm Length

OM-PP-100

125mm Length

OM-PP-125

Product Specification

  • Stainless steel alloy construction
  • Precision Turned finish
  • M6 Tapped hole for mounting

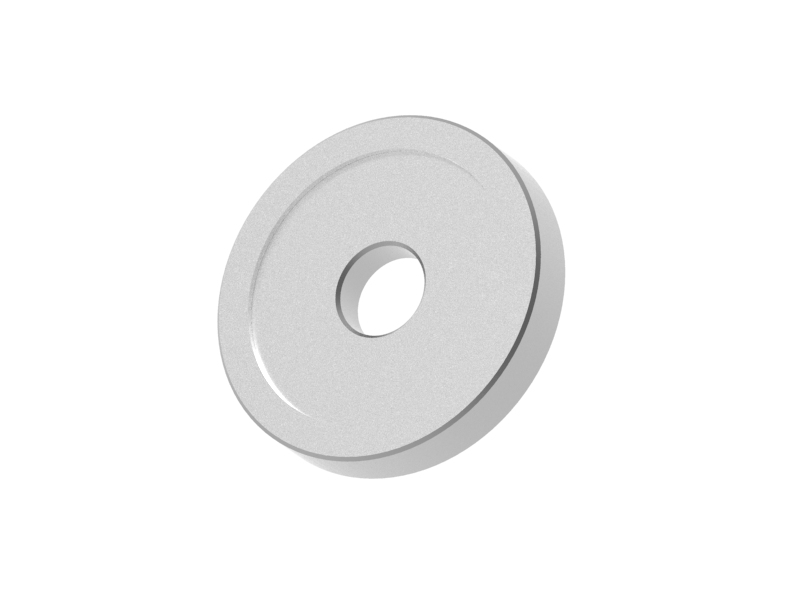

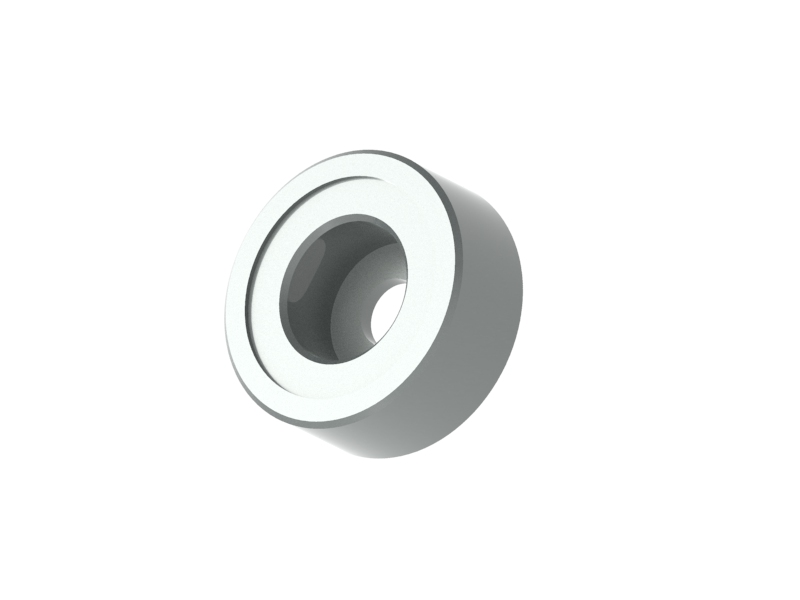

Pedestal Shims (Dia 25mm / 1 inch)

The various shim plate allows us to reach heights other than those of fixed height pedestal
while maintain the stability advantage of such pedestal

Available Sizes

Model No

1mm Thick

OM-PS-1

2mm Thick

OM-PS-2

3mm Thick

OM-PS-3

5mm Thick

OM-PS-5

6mm Thick

OM-PS-6

10mm Thick

OM-PS-10

12mm Thick

OM-PS-12

15mm Thick

OM-PS-15

18mm Thick

OM-PS-18

20mm Thick

OM-PS-20

22mm Thick

OM-PS-22

25mm Thick

OM-PS-25

Product Specification

  • Stainless steel alloy construction
  • Precision Ground finish
  • M6 CLR hole for mounting
  • For 10mm thick & Above -M6 C’bore hole for mouting

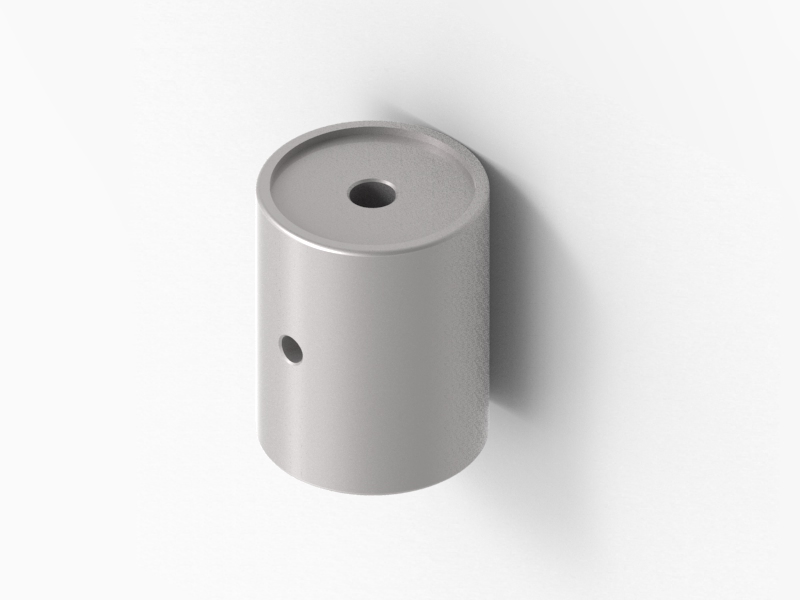

Pillar Post (Dia 25mm / 1 inch)

Pillar posts are extension typecombined with fix-height pedestal OM-PP-series and shim plate, PLP-series to create almost any height that you want

Available Sizes

Model No

25mm Length

OM-PLP-25

50mm Length

OM-PLP-50

100mm Length

OM-PLP-100

125mm Length

OM-PLP-125

150mm Length

OM-PLP-150

Product Specification

  • Stainless steel alloy construction
  • Precision Turned finish
  • M6 Tapped hole for mounting

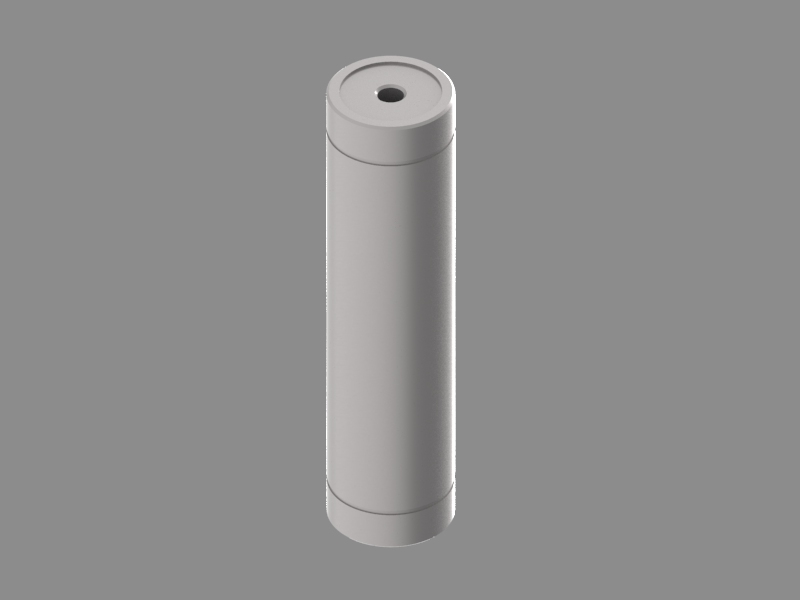

Damped Heavy duty series Post (Dia 25 Series)

These posts can be used in Dual rod posy assembly , Beam steering device set up & imaging setup applications. These posts are made out of precision machined SS pipes. Space inside the pipe is filled with epoxy compound , having vibration damping properties.

Available Sizes

Model No

100mm Length

OM-DHP-100

125mm Length

OM-DHP-125

150mm Length

OM-DHP-150

200mm Length

OM-DHP-200

250mm Length

OM-DHP-250

300mm Length

OM-DHP-300

350mm Length

OM-DHP-350

400mm Length

OM-DHP-400

500mm Length

OM-DHP-500

600mm Length

OM-DHP-600

Product Specification

  • Stainless steel alloy construction
  • Precision Turned finish
  • Filled with Epoxy compound
  • M6 Tapped hole for mounting

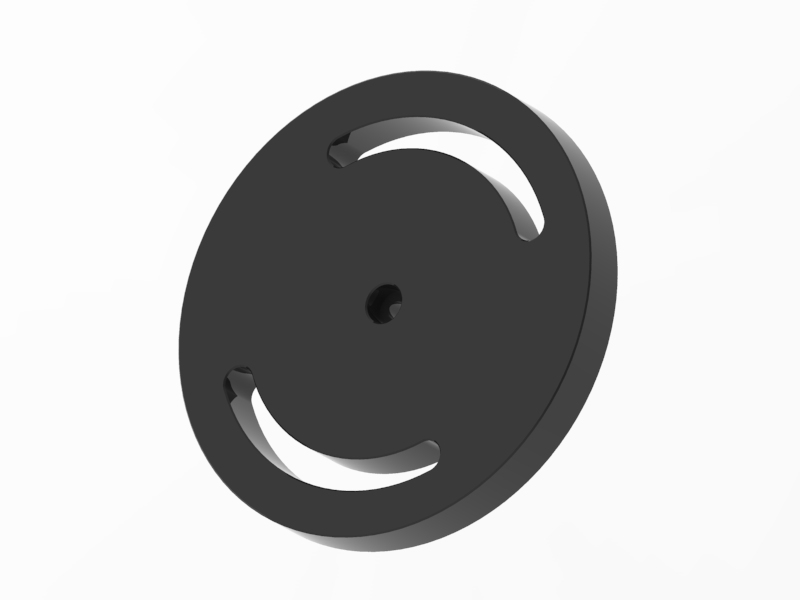

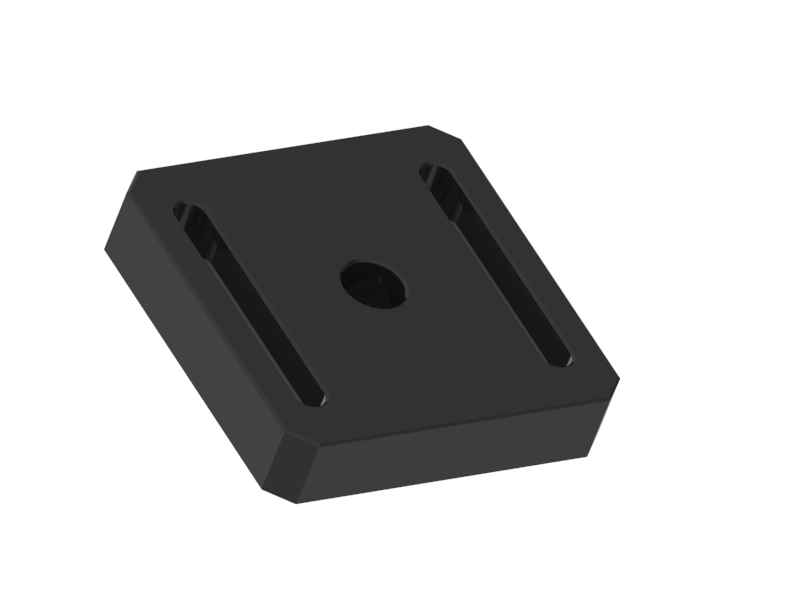

Damped Heavy duty Post Base (Dia 25 Series)

These bases are compatible with the heavy-duty damped post. These bases are useful in applications where we required a quick positioning and fastening of the high load post assemblies on an optical breadboard.

Available Sizes

Model No

75 x 75 x 16 (Rectangular Type-Single channel)

OM-DPB-75

75 (Round Type-Single channel)

OM-DPB-75R

125 x 125 x 16 (Rectangular Type-Dual channel)

OM-DPB-125

125 (Round Type-Dual channel)

OM-DPB-125R

Product Specification

  • Aluminum alloy construction
  • 18mm thick plate
  • M6 CLR Slot for mounting to Optical Breadboards
  • Black anodized finish

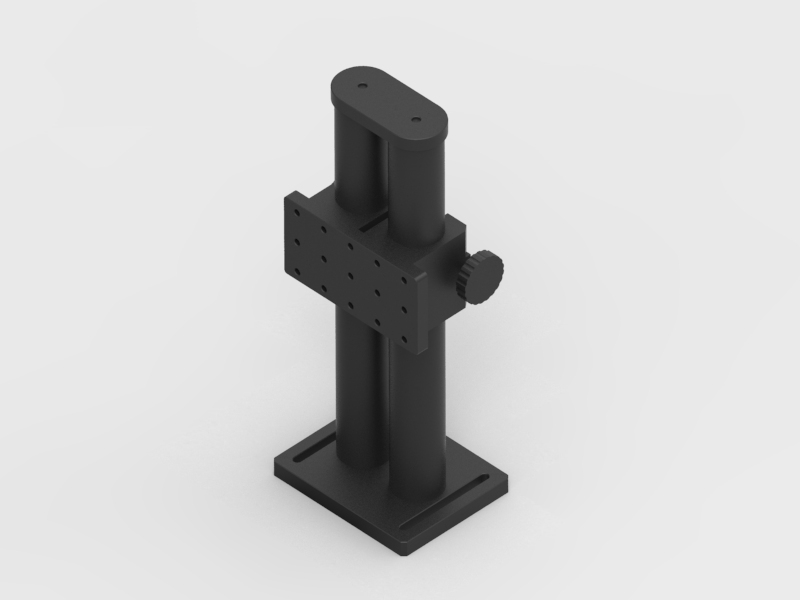

Dual Rod Post Assembly System (Dia 25 Series)

Dual optical rod assembly system provides more stable supports and height adjustment to high load carrying optical assemblies . It consists of two 25mm diameter rods, minimum length 200 mm height mounted to heavy-duty post base. A carriage with locking clampbase with mounting holes can be adjusted in laterally to meet the desired position.

Available Sizes

Model No

200mm Length

OM-DRP-200

300mm Length

OM-DRP-300

400mm Length

OM-DRP-400

500mm Length

OM-DRP-500

600mm Length

OM-DRP-600

Product Specification

  • Aluminium alloy and Stainless steel construction
  • Black Anodised finish and precision turned finish for SS rods
  • Clamp with Locking knobs
  • Carriage with mounting M6 tapped holes at 25mm grid
  • 25mm pipes are filled with epoxy mixture for having vibration damping properties

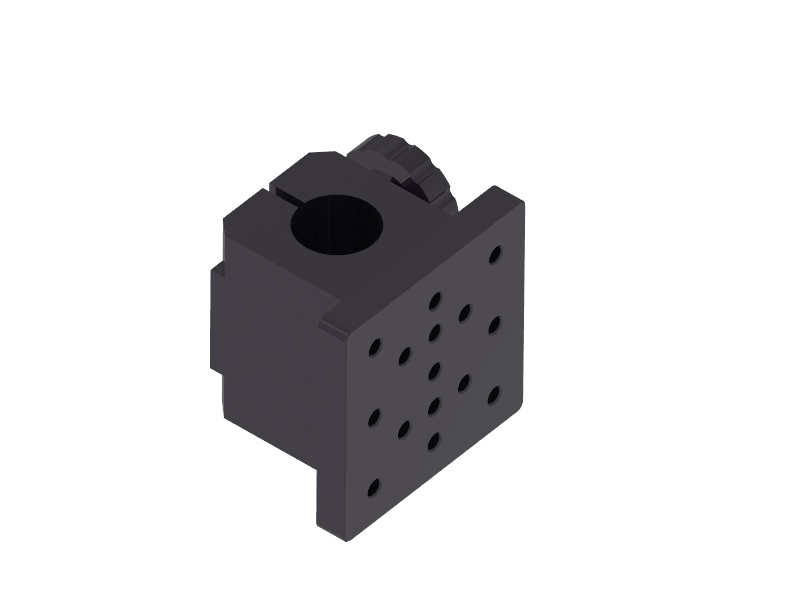

Damped Heavy dutyt Post Mounting clamp (Dia 25 Series)

Clamps are compatiable with Damped heavy duty series post. Clamps will have a locking knobes and a carriage plate with M6 tapped holes for mouting optical assemblies.

Available Sizes

Model No

75 x 75 (Single channel)

OM-DPMC-75

125 x 125 (Dual channel)

OM-DPMC-125

Product Specification

  • Aluminium alloy construction
  • Carriage with mounting M6 tapped holes at 25mm grid
  • Clamp with Locking knobs
  • Black anodized finish
