Kinematic Mounts

A Kinematic mirror mount is a device that holds a mirror In optics research, these can be quite sophisticated devices, due to the need to be able to tip and tilt the mirror by controlled amounts, while still holding it in a precise position when it is not being adjusted. An optical mirror mount generally consists of a movable front plate which holds the mirror, and a fixed back plate with adjustment screws. Adjustment screws drive the front plate about the axes of rotation in the pitch (vertical) and yaw (horizontal) directions. An optional third actuator often enables z-axis translation.

Kinematic Mounts for Plane Mirror

Front plate will be plane surface. Mirror held by adhesive tapes or plane mirror adapters. Front plate with M6 tap on center & additional mirror holders will provide upon request.

Available Sizes

Model No

25mm Optics

OM-KM-P25

50mm Optics

OM-KM-P50

75mm Optics

OM-KM-P75

100mm Optics

OM-KM-P100

Product Specification

  • Aluminum alloy construction
  • Tip tilt adjustment range : +/- 3Degree
  • Linear Resolution : 0.5mm P
  • Mounting Orientation : Vertical & Horizontal
  • M6 Tap mounting hole @ bottom
  • Black anodized finish

Kinematic Mounts for Rectangular type Optics

Front plate will be stepped square bore type. Mirror held by nylon tipped grub screws. 3point drives is also available. Suitable for optics SQ.25mm, SQ.50mm, SQ.75mm & SQ.100mm

Available Sizes

Model No

25mm Optics

OM-KM-R25

50mm Optics

OM-KM-R50

75mm Optics

OM-KM-R75

100mm Optics

OM-KM-R100

Product Specification

  • Aluminum alloy construction
  • Tip tilt adjustment range : +/- 3Degree
  • Linear Resolution : 0.5mm P
  • Mounting Orientation : Vertical & Horizontal
  • M6 Tap mounting hole @ bottom
  • Black anodized finish

Kinematic Mounts for Circular type Optics

Front plate will be stepped bore type. Mirror held by nylon tipped grub screws. 3point drives is also available. Suitable for optics Diameter 25mm, Diameter 50mm, Diameter 75mm, Diameter 100- series.

Available Sizes

Model No

25mm Optics

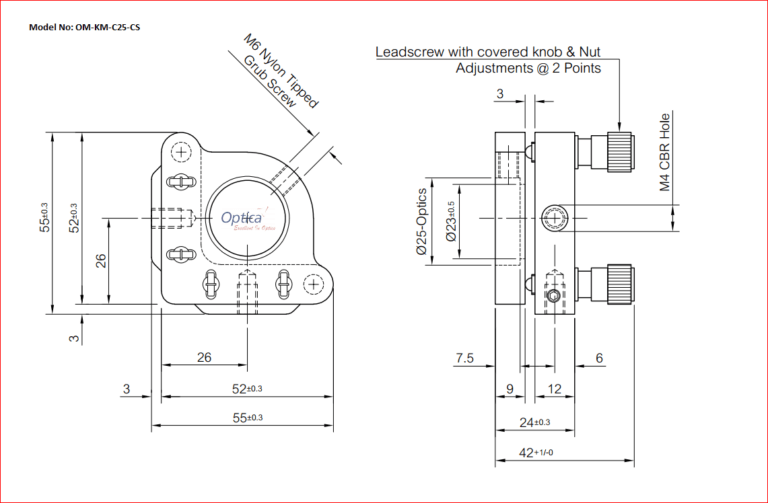

OM-KM-C25

50mm Optics

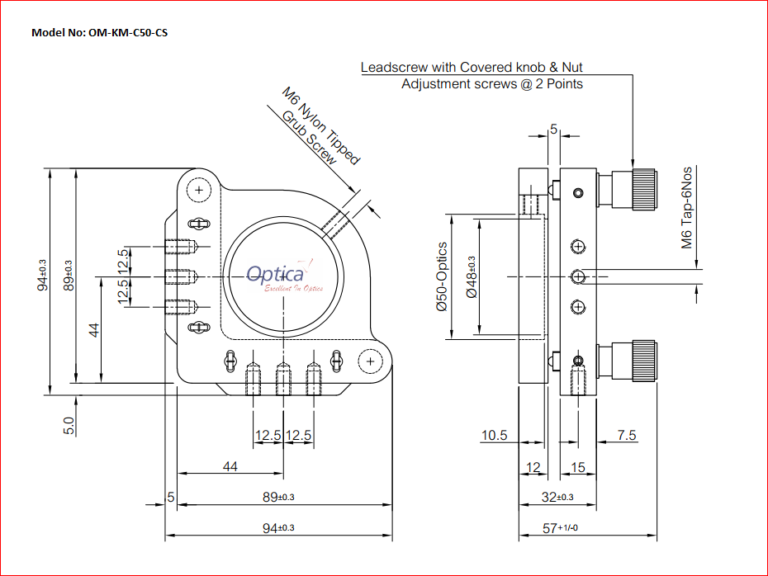

OM-KM-C50

75mm Optics

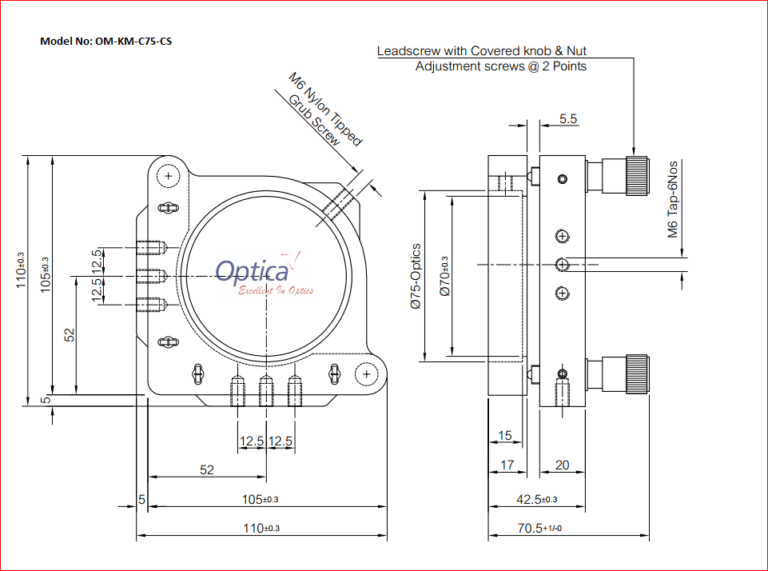

OM-KM-C75

100mm Optics

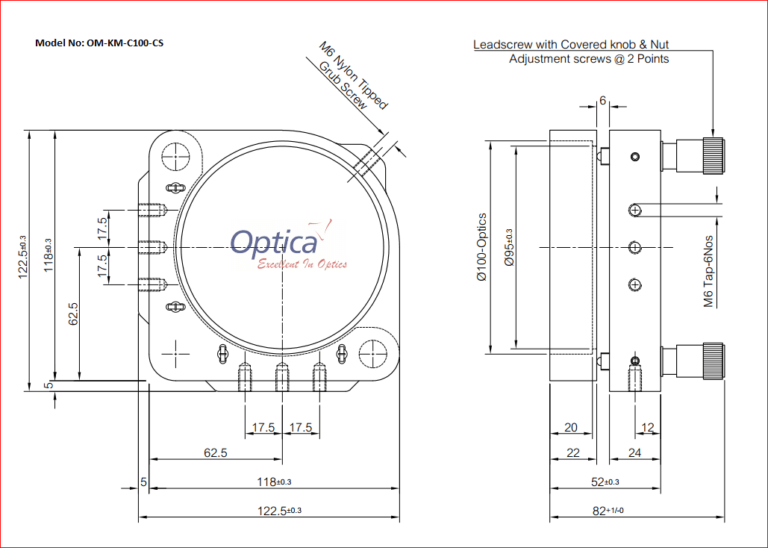

OM-KM-C100

150mm Optics

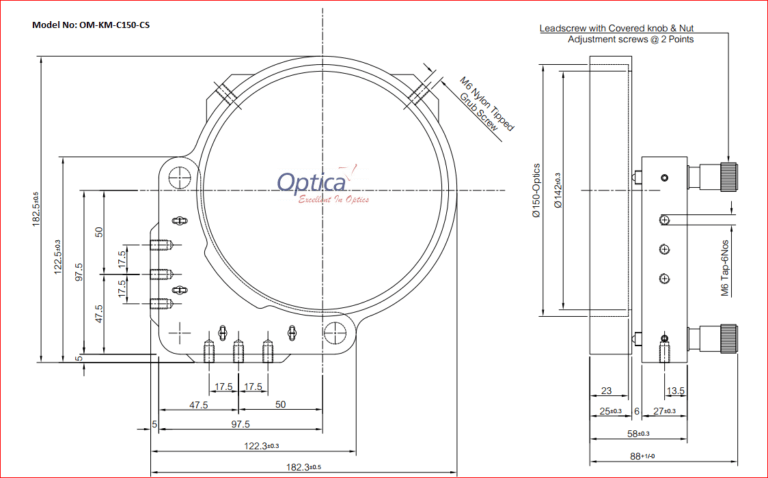

OM-KM-C150

200mm Optics

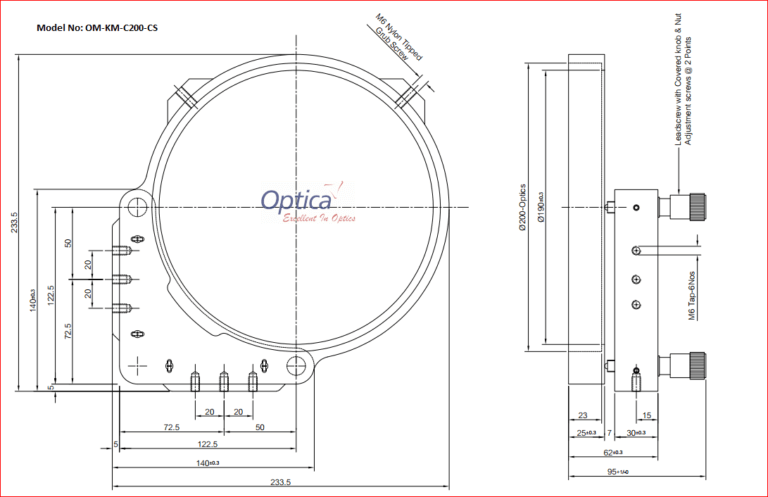

OM-KM-C200

Product Specification

  • Aluminum alloy construction
  • Tip tilt adjustment range : +/- 3Degree
  • Linear Resolution : 0.5mm P
  • Mounting Orientation : Vertical & Horizontal
  • M6 Tap mounting hole @ bottom
  • Black anodized finish

Kinematic Mounts for Corner mounting type

The corner-mounting design is provided for the application that the optics is not easily to go. Precision design with strong spring loading is selected to surpass criteria for repeatability and durability

Available Sizes

Model No

25mm Optics

OM-KM-CM25

50mm Optics

OM-KM-CM50

75mm Optics

OM-KM-CM75

100mm Optics

OM-KM-CM100

Product Specification

  • Aluminum alloy construction
  • Tip tilt adjustment range : +/- 3Degree
  • Linear Resolution : 0.5mm P
  • Mounting Orientation : Vertical & Horizontal
  • M6 Tap mounting hole @ bottom
  • Black anodized finish

Gimbal Mirrror Mounts

Gimbal mirror mounts provide 360 degree coarse positioning in two axes about the front plane in addition to fine adjustments. The device can be either base mounted or post mounted. Optics held in position by a threaded ring inside a threaded bore of the device.

Available Sizes

Model No

25mm Optics

OM-KM-GM25

50mm Optics

OM-KM-GM50

75mm Optics

OM-KM-GM75

100mm Optics

OM-KM-GM100

125mm Optics

OM-KM-GM125

150mm Optics

OM-KM-GM150

200mm Optics

OM-KM-GM200

250mm Optics

OM-KM-GM250

300mm Optics

OM-KM-GM300

500mm Optics

OM-KM-GM500

Product Specification

  • Aluminum alloy construction
  • Tilt Adjustment : Azimuth & Elevation +/-3 Degree
  • 360 Degree free rotation with Locking knob (A & E- Axes )
  • Linear Resolution : 0.5mm P
  • Optics locked by retainer rings
  • M6 CLR slots & M6 C’bore Mouting holes
  • Above dimeter-200 Mirror mounts are heavy duty series construction
  • Black anodized finish

Kinematic Prism Mount - Horizontal Mounting / Adjustable Dual rod locking type

This Kinematic prism mount can be used to hold optics from 10-50mm pr above. Front plate having a mechanism that can be adjusted laterally to fit the optics in to it. It is post mountable type.

Available Sizes

Model No

10 - 25mm Prism Mounting Platform

OM-KM-PM25

25 - 50mm Prism Mounting Platform

OM-KM-PM50

Product Specification

  • Aluminum alloy construction
  • Tip tilt adjustment range : +/- 2 Degree
  • Mechanical mount orientation-Horizontal Mounting
  • Dual arms with Adjustable locking clamps
  • Black anodized finish

Kinematic Prism Mount - Verical Mounting / Adjustable single rod locking type

Mechanical mount positioned in vertically and Optical prism holded by locking clamps & that can be adjusted depend up on prism size. Drives are fitted in a tangential position. It is post mountable type.

Available Sizes

Model No

10 - 25mm Prism Mounting Platform

OM-KM-PMV25

25 - 50mm Prism Mounting Platform

OM-KM-PMV50

Product Specification

  • Aluminum alloy construction
  • Tip tilt adjustment range : +/- 2 Degree
  • Mechanical mount orientation-Vertical Mounting
  • Single road with adjustable locking clamps
  • Black anodized finish
