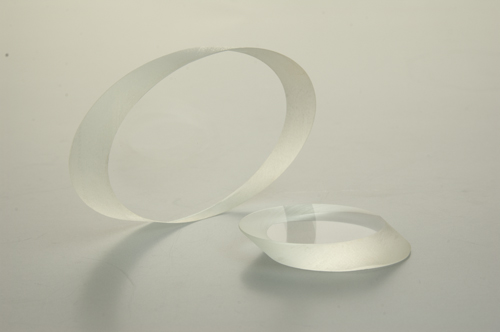

Elliptical Windows

Specification

Grade

Material

BK7

Diameter Size

10mm To Maximum

Thickness Tolerance

± 0.01mm

Angle Of Incidence

45`

Effective Focal Length

+2%

Clear Aperture

>90%

Flatness

Lambda/2(General), Lambda/8 (High Precision)

Flat Window

Specification

Grade

Material

BK7

Diameter Size

10mm To Maximum

Thickness Tolerance

± 0.01mm

Angle Of Incidence

45`

Effective Focal Length

+2%

Clear Aperture

>90%

Flatness

Lambda/2(General), Lambda/8 (High Precision)

Optical Windows are optical glass with polished faces that are relatively parallel. They are used to protect laser output. Always windows are AR coated to eliminate reflection, so AR coated windows offer improved transmission when used in industrial displays or computer monitors. Their high transmission makes them ideal for most industrial and laser protecting applications.

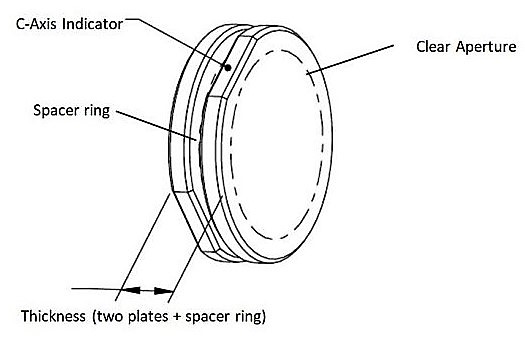

Filter:  Circular Window

Diameter: 12.5mm To 50mm

Material: Fused Silica/BK7 Sapphire

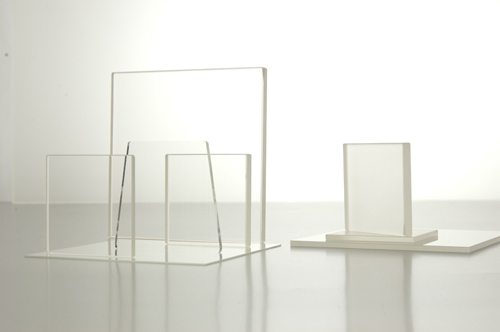

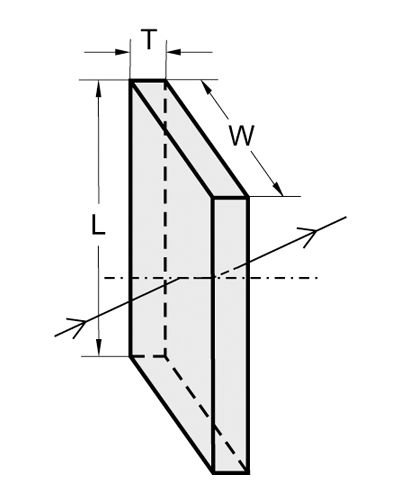

Filter:  Rectangular Window

Diameter: 12.5mm/12.5mm To 50mm/50mm

Material: Fused Silica/BK7 Sapphire

Standard Precision Grade

Material

Surface Flatness @632.8 nm

Parallelism

Bevel/Chamfer

Coating Options

Fused Silica / BK7 Sapphire

Lambda /4

<=2 arc min

0.3 x 45°

AR Coating

MgF2 (400-700nm) Single Layer Coating

Size

Dimension Tolerance

12.5 mm +0.0 / - 0.2mm

2mm +/-0.1mm

25 mm +0.0 / - 0.2mm

2mm +/-0.1mm

37.5 mm +0.0 / - 0.2mm

4mm +/-0.1mm

50 mm +0.0 / - 0.2mm

6mm +/-0.1mm

Commercial Grade

Material

Surface Flatness @632.8 nm

Parallelism

Bevel/Chamfer

Coating Options

Fused Silica / BK7 Sapphire

Lambda

<=5 arc min

0.3 x 45°

AR Coating

MgF2 (400-700nm) Single Layer Coating

Size

Dimension Tolerance

12.5 mm +0.0 / - 0.2mm

2mm +/-0.1mm

25 mm +0.0 / - 0.2mm

2mm +/-0.1mm

37.5 mm +0.0 / - 0.2mm

4mm +/-0.1mm

50 mm +0.0 / - 0.2mm

6mm +/-0.1mm

Laser Protective Window

“Antireflective coating Enhances Optical Windows Performance!”

Each beam of light generates a back reflection during the transition from one into another medium. Antireflective coatings are used to minimize effects like loss of power and the appearance of dangerous hot spots caused by the back reflection.

Antireflective coatings (short AR-coating) are used in a variety of optics as they reduce the reflection of glass surfaces. The increased light transmission and a reduction of aberrations are the main advantages.


Product features

  • Single layer – AR (advantageous for materials with high refractive index)
  • Narrow-band AR coatings (eg for V-type single laser wavelength).
  • Broadband AR coatings
  • Multispectral AR coatings

Typical applications

  • Antireflective sight glass window to protect  high-quality laser optics from splashing material
  • Antireflective laser scanner window

Protective windows for Disc-,

Used as last optics to be used before the working are to protect the high-class laser optic from material spillings during the laser welding and cutting process.



Coating range

All AR-Coatings can be offered with a wavelength range between 200-3000nm.



Standard specification for Laser Protection Windows

  • Standard substrate: Fused Silica (for lasers with higher output power)
  • Standard tolerances: Ø±0.1mm or +0/-2mm
  • Thickness: ±0.1mm or +0/-0.2mm
  • Edges grinded with Chamfer ( 0.3mmx45°)
  • Both sides mechanically polished λ/4-λ/6
  • Scratch/dig 60/40
  • Standard Coating: @1064nm T≥99.5%, @633nm T≥99.5% or broad band coating: i. e.@900-1080nm T≥99.5%

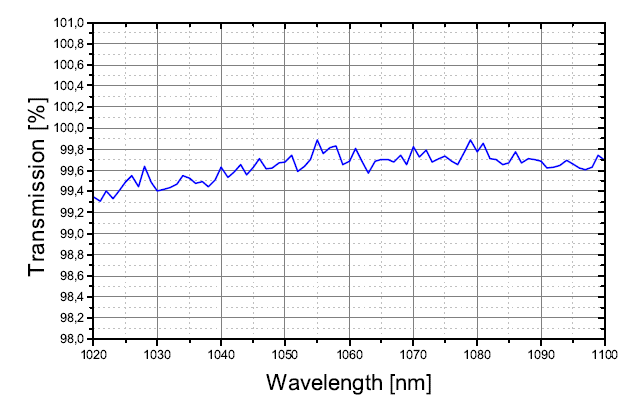

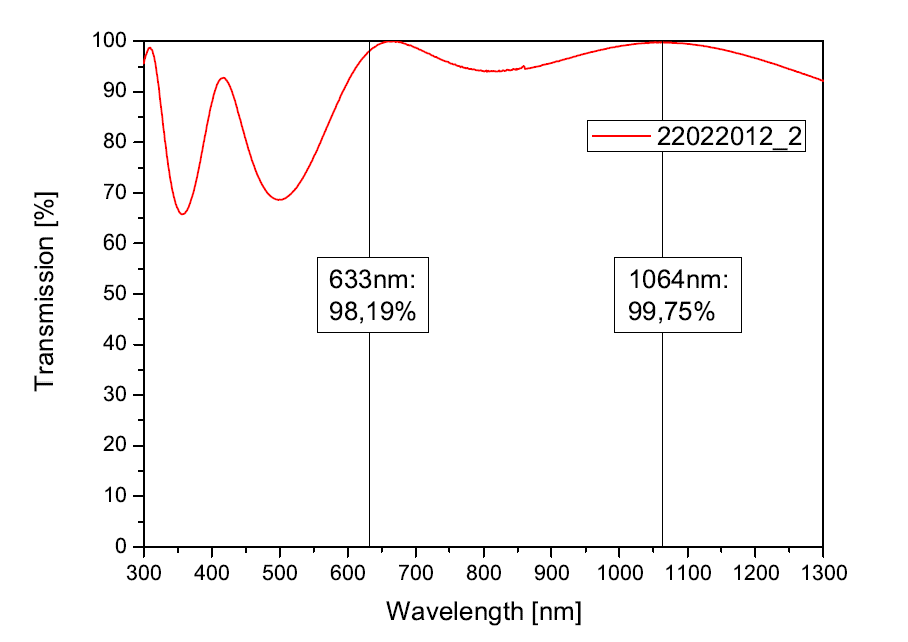

Sample CURVES for a coated fused silica substrate for 1064nm

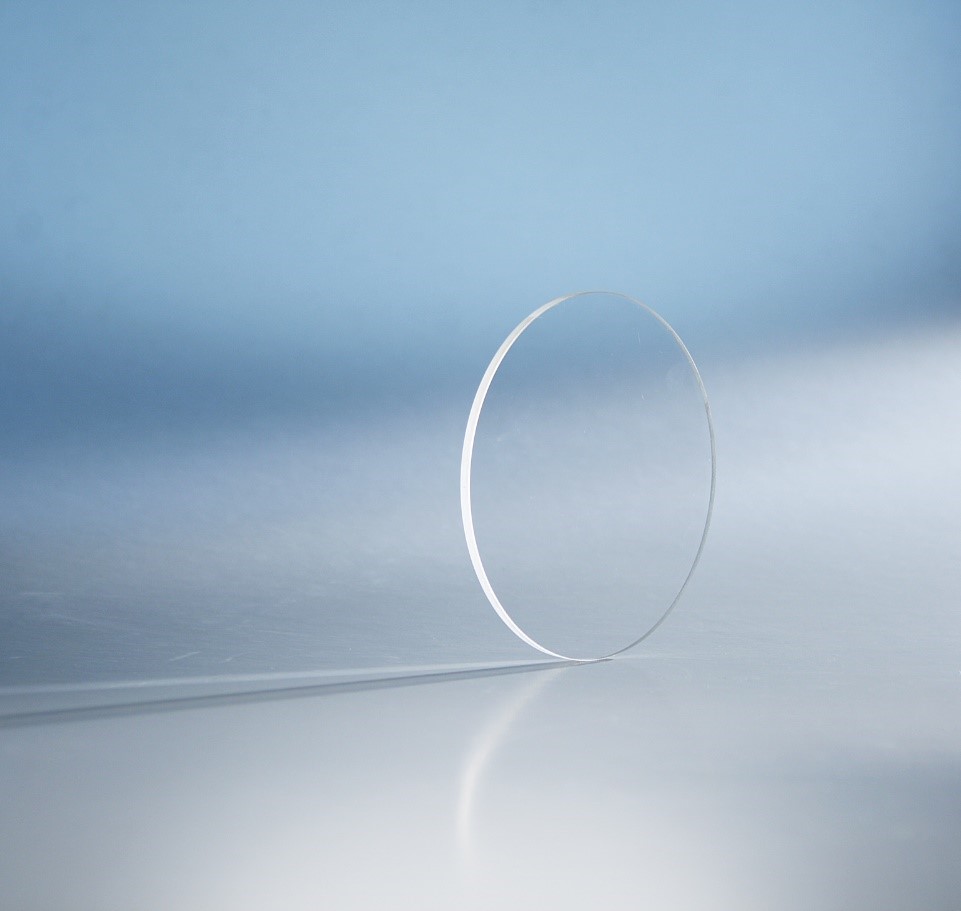

We are also able to offer you laser discs without anti-reflective coating!



Please feel free to contact us, if your needed laser disc is not stated in the list and let us have your specification. (diameter, coating and so on), so that we can arrange an individual offer for you.

Wedged Window

Specification

Grade

Material

BK7

Diameter Size

10mm To Maximum

Thickness Tolerance

± 0.01mm

Angle Of Incidence

45`

Effective Focal Length

+2%

Dimension

+/-0.2 (General), +0/-0.05 (High Precision)

Flatness

Lambda/2(General), Lambda/8 (High Precision)

Optica offers a line of Wedged Laser Protecting Windows with AR coatings on both sides. These wedged optics eliminate fringe patterns and can be used to help avoid cavity feedback. Windows are useful for protecting a laser output from environmental effects and for beam sampling applications. We also supply planar windows with a variety of substrate materials and coating options.



We  provide materials  made  out of BK7, Fused Silica, BaF2, KBr, Silicon, Germanium and ZnSe according customer’s specifications. Standard wedge angles are 30′, 12′, 1°, 2°, 5° and 7.5° but we can make any angle. Please contact us for quotation of your custom optical wedge price!
