In Stock

OPLLC0021

Lens Part Number : OPLLC0021

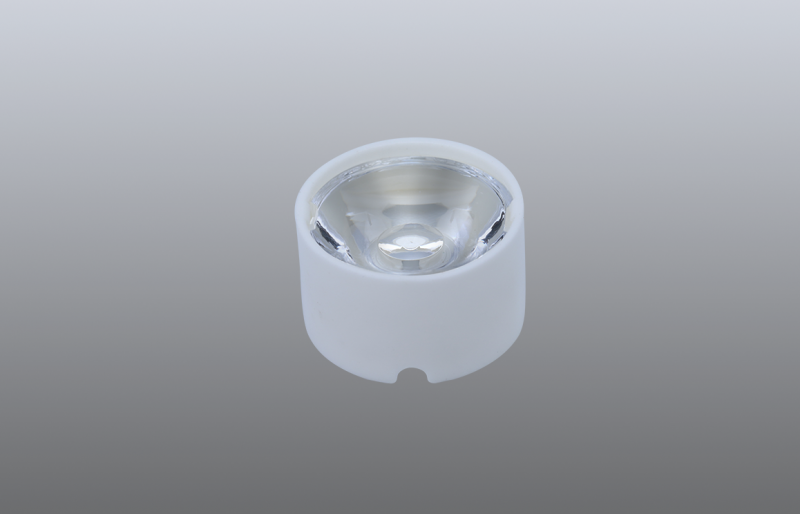

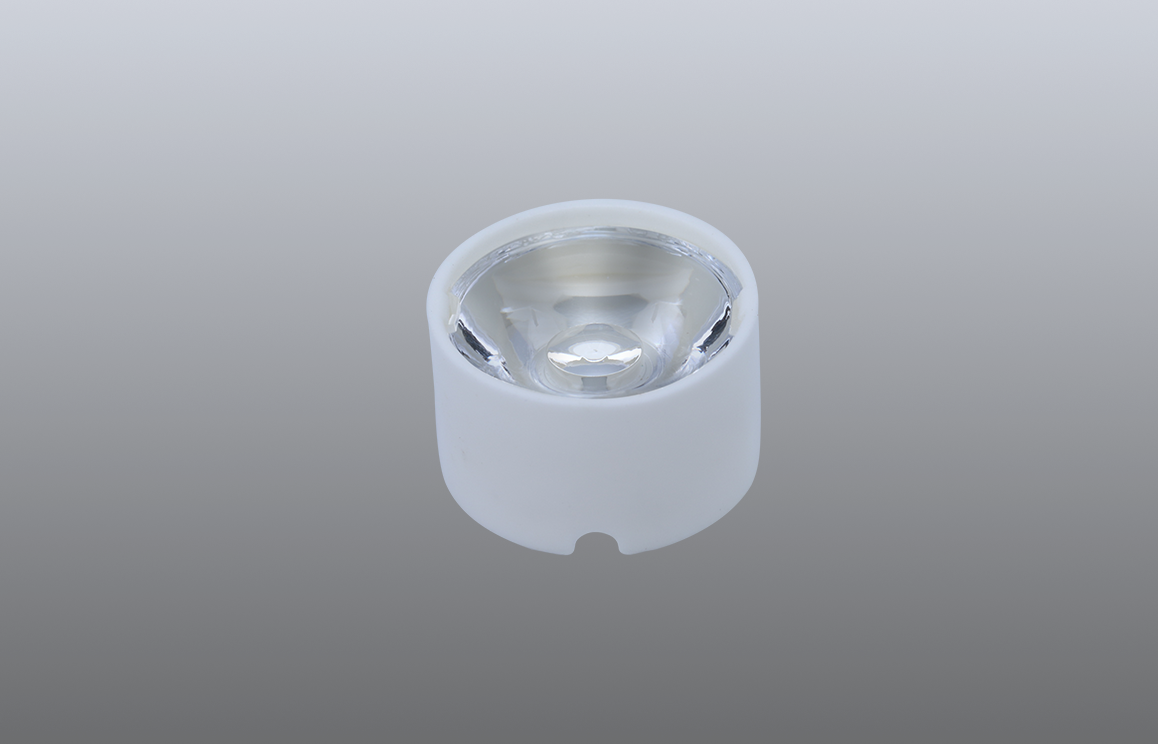

Single Lens for High Bay / Flood Light
Material                        : PMMA
Application                  : LED Lens for  Flood Light and Bay Light
Lens Operating Temperature : -40°C to +70°C
Lens Dimensions      : Dia 14.76mm & Height 8.30mm
Holder Dimensions : Dia 16.20mm & Height 9.80mm
LED compatibility    : OSRAM GD+
FWHM Angle             : 19°
Compare

Description

Lens with Osram GD Plus LED Holder This Lens is mainly used for LED Flood Light and Bay Light to get light in proper direction and angle. This Flood Light Lens is assembled with holder and suitable for Osram GD Plus LED We manufacture this lens and capable of supplying any quantity as per customer requirement. Below mentioned table will give a fair information on properties of LED Flood Light Lens / LED Bay Light Lens with different LED. Datasheet also can be downloaded accordingly from the table.

LED Manufacturer

LED Model

FWTM Angle (°) Spread

FWTM Angle (°) Throw

Cd/lm

Efficiency (%)

Datasheet

OSRAM

GD Plus

19.5

33

7.89

90

Download
