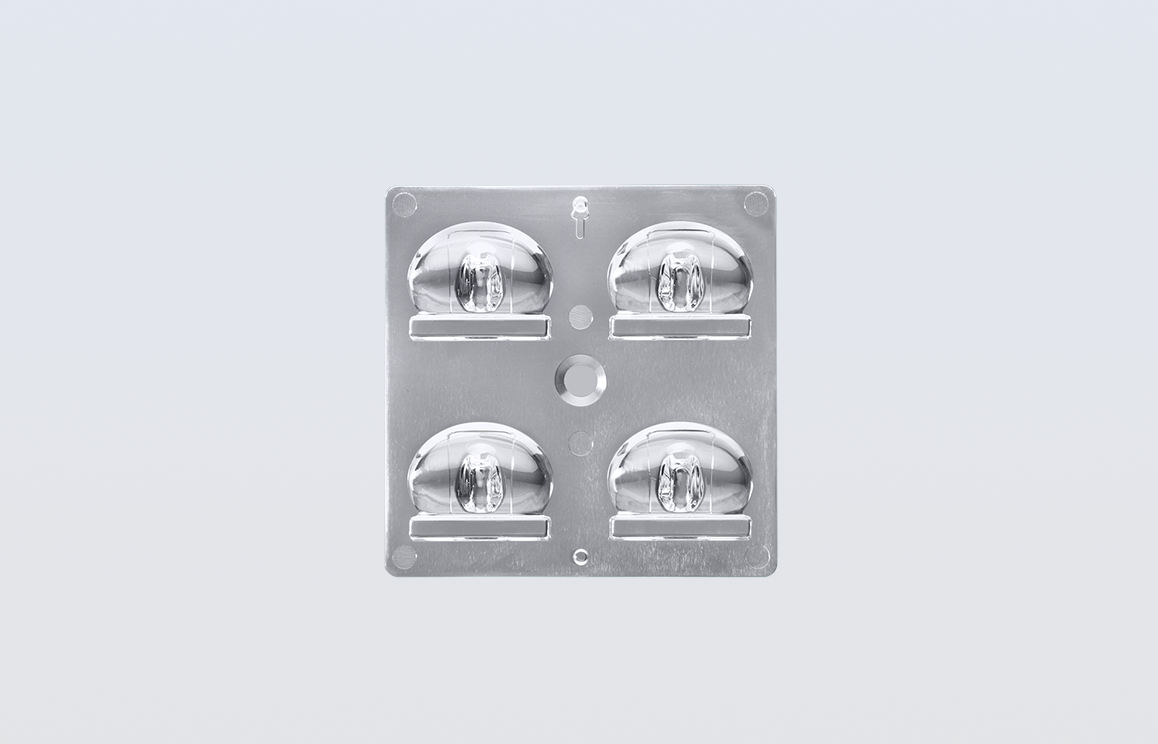

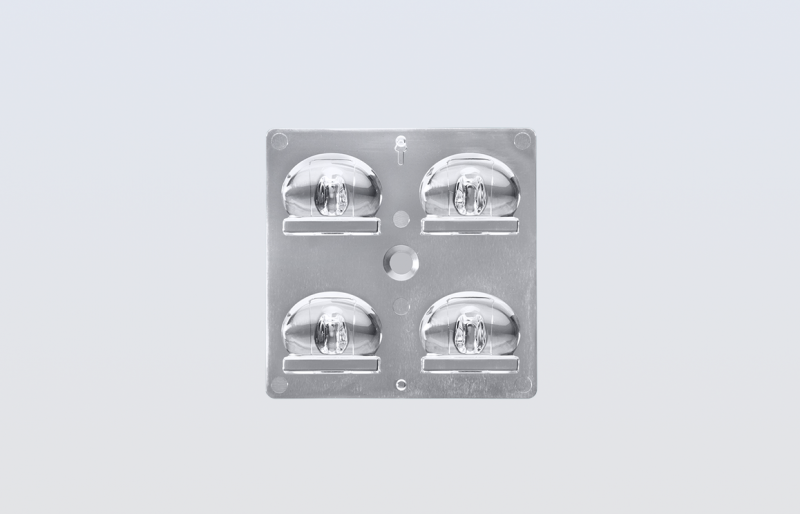

Lens Part Number : OPLLS0135C
4in1 Street Light Lens

Material : Polycarbonate
Lens Operating Temperature : -40°C to +120°C
Lens Dimensions (L x W x H) : 49.90 x 49.90 x 6.5mm
LED Compatibility : Package 5050
Application : Street Lighting
FWHM Angle: Type III

4in1 Cluster LED Lens for Street Light for 5050 LED


This is 4in1 Street Light Lens suitable for 5050 LED. We can provide IES File and datasheet on request. Drawing of the lens can be downloaded from below link. Please feel free to send any query about lens, we will get back to you with details accordingly.

S.No LED Manufacturer LED Model FWTM Angle (°) Spread FWTM Angle (°) Throw Cd/lm Efficiency (%) Datasheet
1BridgeluxSMD 50501801330.5088Datasheet
2CREEXLamp MHB-B1751390.5088Datasheet
3OSRAMDuris S81771390.4888Datasheet
4SAMSUNGLH508A1771450.5088Datasheet
5LUMILEDLUXEON 50501791320.5288Datasheet

Drawing
