Lens Part Number : OPLLS0134

Single Street Light Lens

Material: Polycarbonate
Lens Operating Temperature: -40°C to +120°C
Lens Dimensions (L x W x H) : 21 x 16.5 x 6.5 mm
LED Compatibility: Package 5050
Application : Street Lighting

FWHM Angle: Type II & Type III

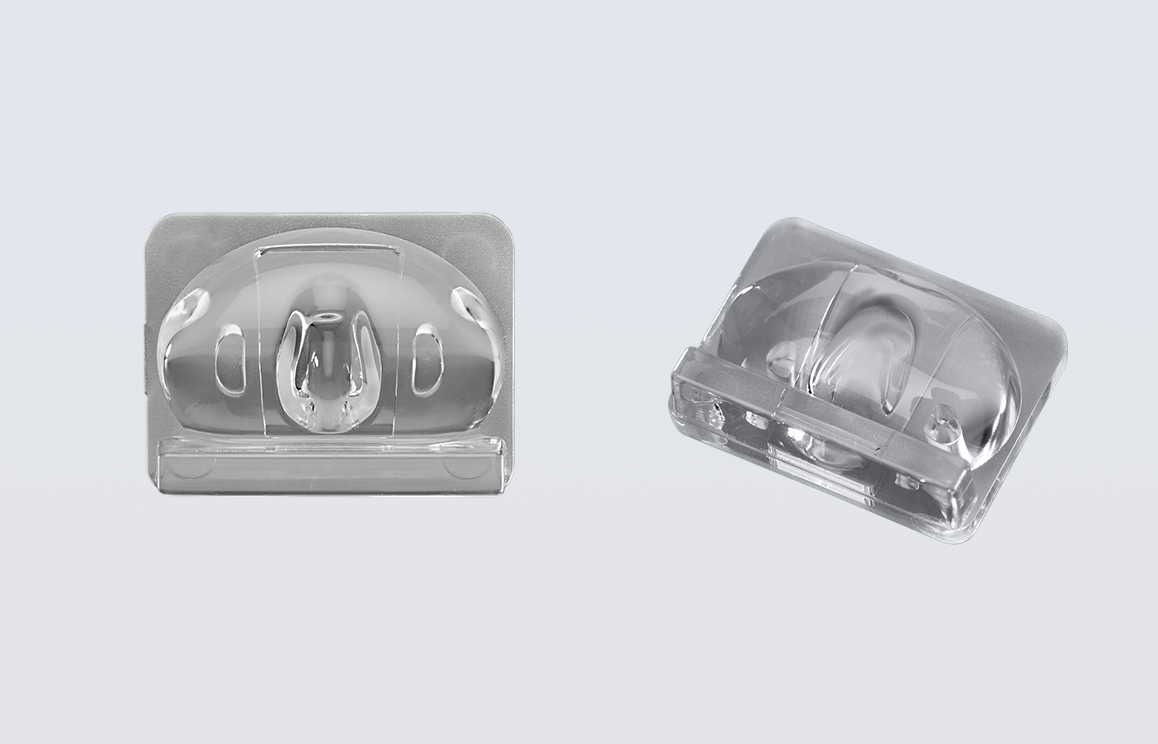

Sinlge  Street Light Lens for 5050 LED

This is Single  LED lens for Street Light Lens suitable for 5050 LED. We can provide IES File and datasheet on request. Drawing of the lens can be downloaded from below link. Please feel free to send any query about lens, we will get back to you with details accordingly.

S.No LED Manufacturer LED Model FWHM Angle (°) FWTM Angle (°) Cd/lm Efficiency (%) Datasheet
1CREEX-Lamp MHB-B1551790.5489Datasheet
2BRIDGELUX50501571830.5689Datasheet
3OSRAMDuris S8 1491790.5789Datasheet
4LUMILED LUXEON50501581860.5289Datasheet
5SAMSUNGLH508A1571770.6089Datasheet

Drawing
