Lens Part Number : OPLLS0133C

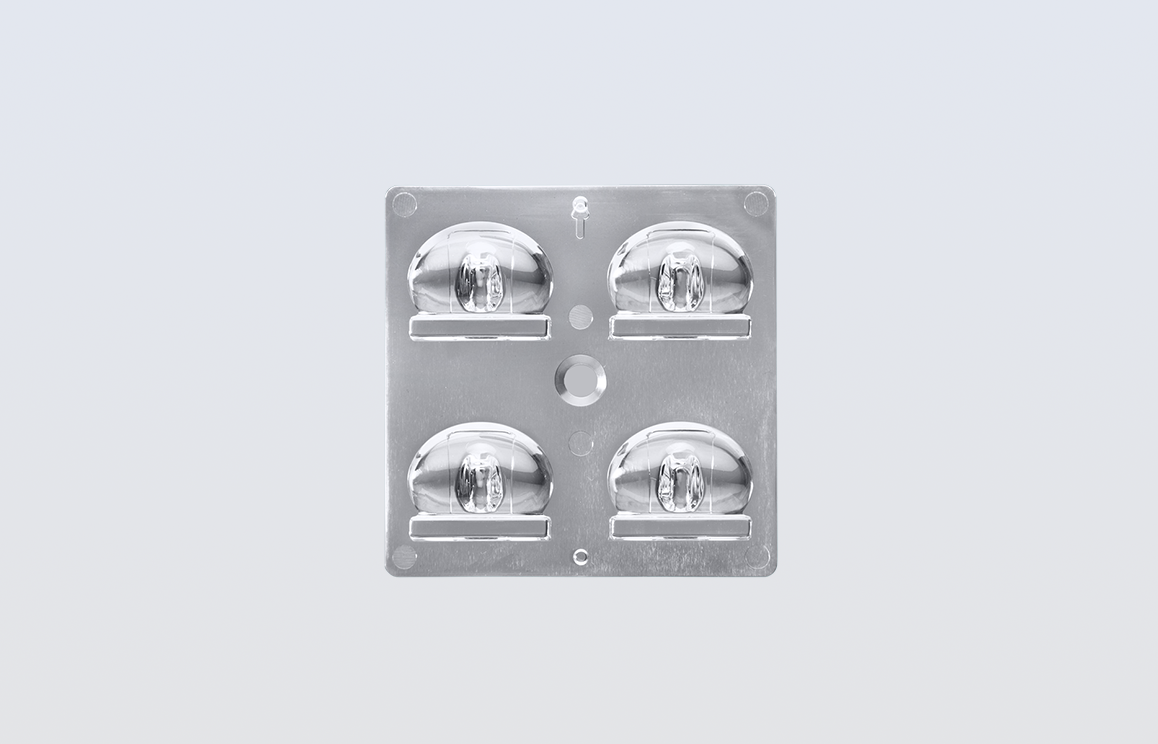

4in1 Street Light Lens

Material : Polycarbonate
Lens Operating Temperature : -40°C to +120°C
Lens Dimensions (L x W x H) : 50 x 50 x8mm
LED Compatibility : Package 5050
Application : Street Lighting
FWHM Angle: Type II & Type III

4in1  Street Light Lens for 5050 LED

This is 4in1  LED lens for Street Light Lens suitable for 5050 LED. We can provide IES File and datasheet on request. Drawing of the lens can be downloaded from below link. Please feel free to send any query about lens, we will get back to you with details accordingly.

S.No LED Manufacturer LED Model FWTM Angle (°) Spread FWTM Angle (°) Throw Cd/lm Efficiency (%) Datasheet
1BridgeluxSMD 5050 Gen21801260.4888.1Datasheet
2CREEX-Lamp MHB-B1771270.4888Datasheet
3OSRAMDuris S81751380.4888Datasheet
4SAMSUNGLH508A1741310.4888Datasheet
5LUMILEDLUXEON 50501801250.4888.2Datasheet

Drawing
