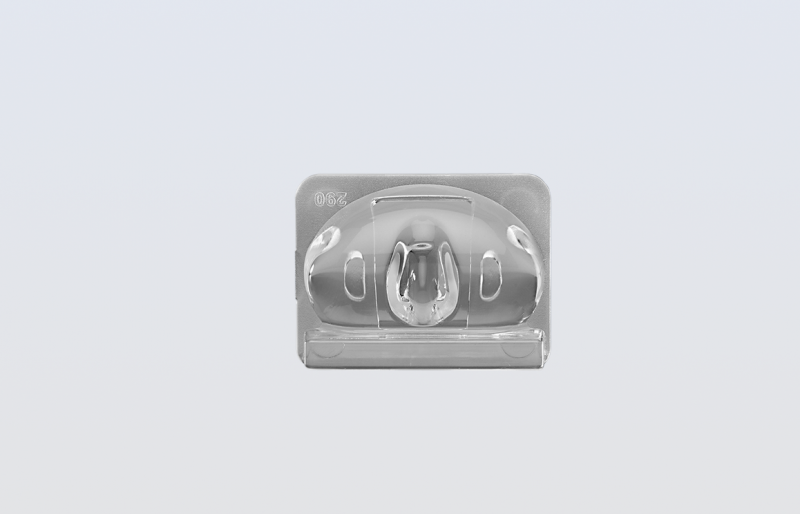

Lens Part Number : OPLLS0131
Single  Street Light Lens

Material : Polycarbonate
Lens Operating Temperature : -40°C to +120°C
Lens Dimensions (L x W x H) : 21 x 16.5 x 6.5mm
LED Compatibility : Package 5050
Application : Street Lighting
FWHM Angle: Type III

Single LED Lens for Street Light for 5050 LED

This is Single LED lens for Street Light Lens suitable for 5050 LED. We can provide IES File and datasheet on request. Drawing of the lens can be downloaded from below link. Please feel free to send any query about lens, we will get back to you with details accordingly.

S.No LED Manufacturer LED Model FWTM Angle (°) Spread FWTM Angle (°) Throw Cd/lm Efficiency (%) Datasheet
1Bridgelux50501851410.5089Datasheet
2CREEMHB-B1791440.5089Datasheet
3OSRAMDuris S81781440.4889Datasheet
4SAMSUNGLH508A1861480.4889Datasheet
5LUMILEDLUXEON 50501851270.4489Datasheet

Drawing

Additional information

Diameter or Length (mm)

LED Lighting Application

Part Number

Product Height (mm)

Product Material

Product Width (mm)
