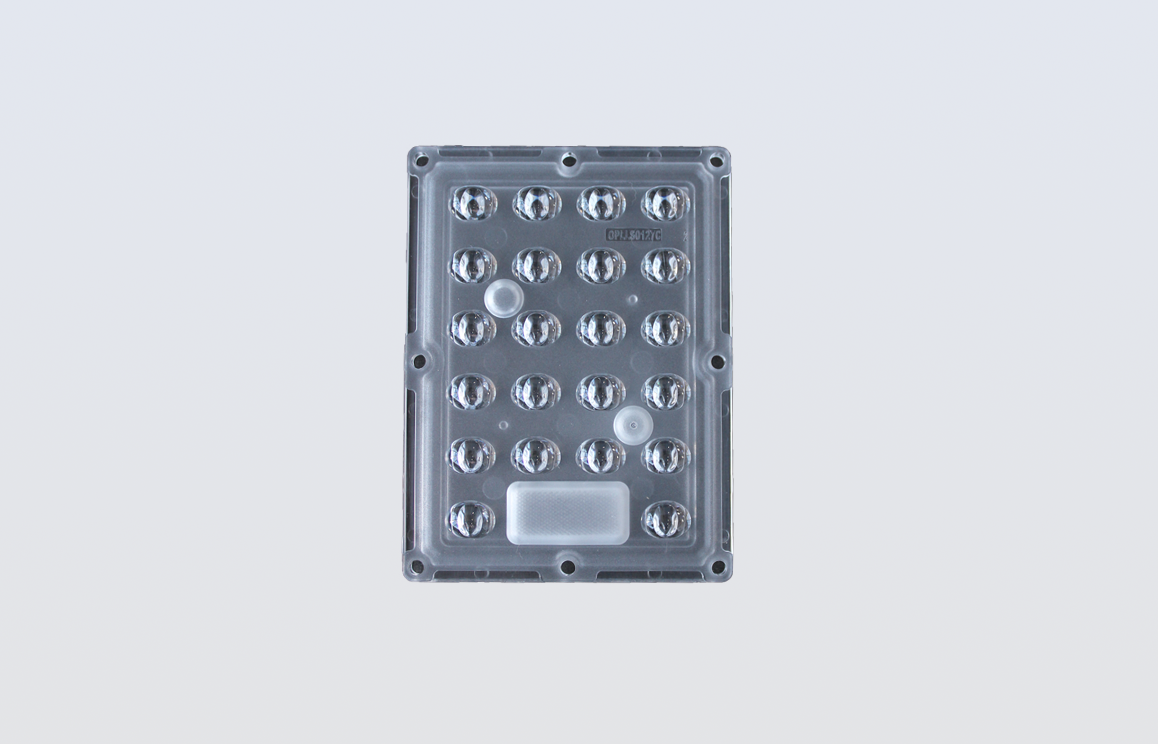

Lens Part Number : OPLLS0127C
22in1 Street Light Lens

Material: Polycarbonate
Lens Operating Temperature: -40°C to +120°C
Lens Dimensions (L x W x H) : 100 X 74.80 X 7.60mm
LED Compatibility: Package 3030 / 3535 / 3737
Application : Street Lighting
FWHM Angle: Type II & Type III

21in1  Street Light Lens for 3030 to 3535 LED

This is 21in1  LED lens for Street Light Lens suitable for 3030 to 3535 LED. We can provide IES File and datasheet on request. Drawing of the lens can be downloaded from below link. Please feel free to send any query about lens, we will get back to you with details accordingly.

S.No LED Manufacturer LED Model FWTM Angle (°) Spread FWTM Angle (°) Throw Cd/lm Efficiency (%) Datasheet
1CREEX-Lamp XP-E1671340.4290Datasheet
2CREEXlamp XP-E21701340.4490Datasheet
3CREEXLamp XP-G31741430.3489Datasheet
4CREEXLamp XP-G21721400.4289Datasheet
5CREEXlamp XT-E1751450.3489Datasheet
6OSRAMDuris P8 1701330.4089Datasheet
7EDISON3535 FX1671270.4689Datasheet
8LG INNOTEKH35C11721380.3889Datasheet
9SAMSUNGLH351B1641340.4090Datasheet
10SAMSUNGLH351C1611320.4490Datasheet
11NICHIANVSW319B1721400.3889Datasheet
12OSRAMOslon Square1671400.3689Datasheet
13SEOULZ5M01701410.4089Datasheet
14SEOULZ5M11671350.4090Datasheet
15SEOULZ5M21621320.4290Datasheet

Drawing
