Lens Part Number : OPLLS0126C

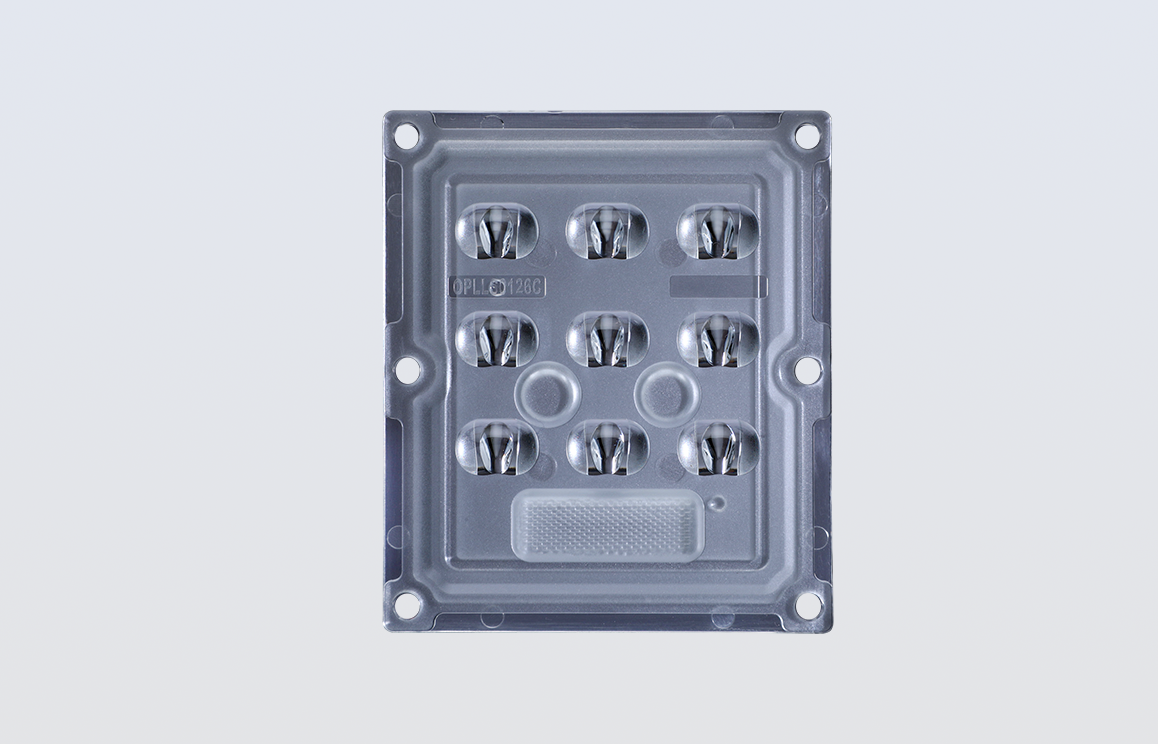

9in1 Street Light Lens (IP & IK)

Material: Polycarbonate
Lens Operating Temperature: -40°C to +120°C
Lens Dimensions (L x W x H) : 70 x 60 X 6.60mm
LED Compatibility: Package 3030 / 3535 / 3737
Application : Street Lighting
FWHM Angle: Type II

9in1  Street Light Lens for 3030 to 3535 LED

This is 9in1  LED lens for Street Light Lens suitable for 3030 to 3535 LED. We can provide IES File and datasheet on request. Drawing of the lens can be downloaded from below link. Please feel free to send any query about lens, we will get back to you with details accordingly.

S.No LED Manufacturer LED Model FWTM Angle (°) Spread FWTM Angle (°) Throw Cd/lm Efficiency (%) Datasheet
1CREEX-Lamp XP-E1511090.7590Datasheet
2CREEXlamp XP-E21601080.8090Datasheet
3CREEXLamp XP-G31641130.5289Datasheet
4CREEXLamp XP-G21591120.7089Datasheet
5CREEXlamp XT-E1611150.5489Datasheet
6OSRAMDuris P8 1541050.6589Datasheet
7EDISON3535 FX1511060.7089Datasheet
8LG INNOTEKH35C11601150.6089Datasheet
9SAMSUNGLH351B1511080.7090Datasheet
10SAMSUNGLH351C1521020.6590Datasheet
11NICHIANVSW319B1641120.5489Datasheet
12OSRAMOslon Square1591140.7090Datasheet
13SEOULZ5M01521090.6589Datasheet
14SEOULZ5M11541080.7089Datasheet
15SEOULZ5M21531030.7090Datasheet

Drawing
