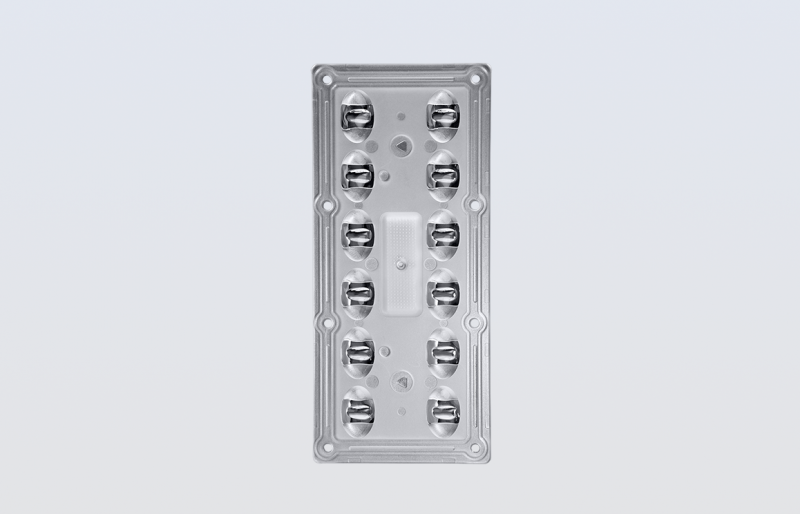

12in1 Street Light Lens for 3535 LED
This is 12in1 LED lens for Street Light Lens suitable for 3535 LED. We can provide IES File and datasheet on request. Drawing of the lens can be downloaded from below link. Please feel free to send any query about lens, we will get back to you with details accordingly.
| S.No | LED Manufacturer | LED Model | FWTM Angle (°) Spread | FWTM Angle (°) Throw | Cd/lm | Efficiency (%) | Datasheet |
|---|---|---|---|---|---|---|---|
| 1 | CREE | X-Lamp XP-E | 169 | 144 | 1.0 | 88 | Datasheet |
| 2 | CREE | XP-E2 | 170 | 142 | 0.80 | 88 | Datasheet |
| 3 | CREE | XLamp XP-G3 | 170 | 153 | 0.70 | 88 | Datasheet |
| 4 | CREE | XLamp XP-G2 | 172 | 155 | 1.0 | 88 | Datasheet |
| 5 | CREE | XT-E | 169 | 153 | 0.80 | 88 | Datasheet |
| 6 | OSRAM | Duris P8 | 162 | 137 | 0.80 | 88 | Datasheet |
| 7 | EDISON | 3535 FX | 164 | 139 | 0.85 | 88 | Datasheet |
| 8 | LG INNOTEK | H35C1 | 172 | 148 | 0.80 | 88 | Datasheet |
| 9 | SAMSUNG | LH351B | 167 | 141 | 0.75 | 88 | Datasheet |
| 10 | SAMSUNG | LH351C | 161 | 143 | 0.75 | 88 | Datasheet |
| 11 | NICHIA | NVSW319B | 172 | 150 | 0.70 | 88 | Datasheet |
| 12 | OSRAM | Oslon Square | 172 | 139 | 0.70 | 88 | Datasheet |
| 13 | SEOUL | Z5M0 | 168 | 143 | 0.85 | 88 | Datasheet |
| 14 | SEOUL | Z5M1 | 167 | 139 | 0.90 | 88 | Datasheet |
| 15 | SEOUL | Z5M2 | 164 | 143 | 0.85 | 88 | Datasheet |
Drawing
Click Here to Download
