Lens Part Number : OPLLS0119C

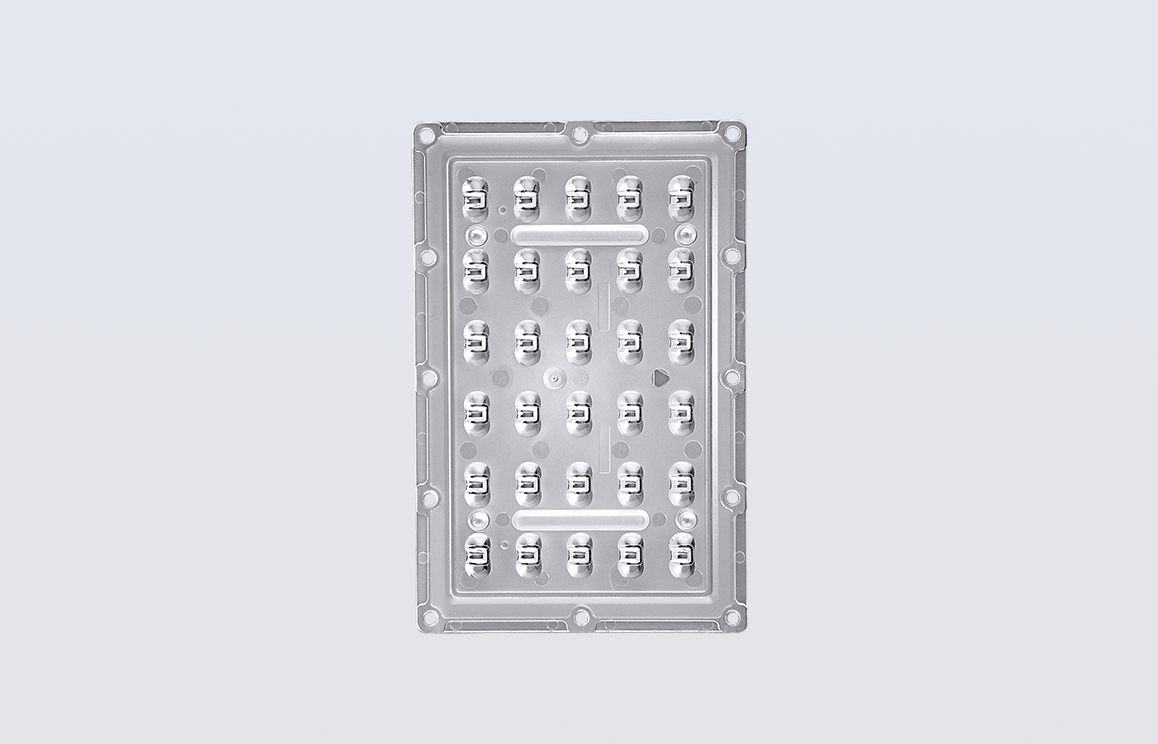

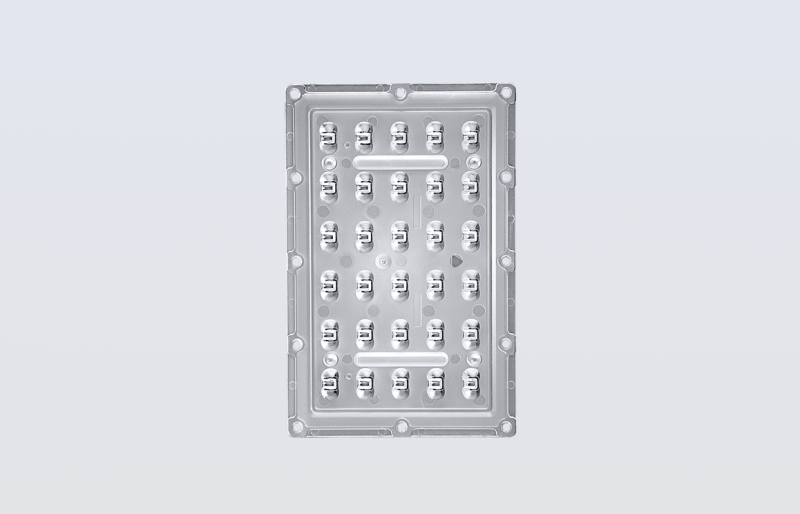

30in1 Street Light Lens (IP & IK)

Lens Material: Polycarbonate
Gasket Material: Silicon
Lens Operating Temperature: -40°C to +120°C
Lens Dimensions (L x W x H) : 140mm x 91mm x 6mm
LED Compatibility: 2835 / 3030
Application : Street Lighting
FWHM Angle: Type II

30 in 1  Street Light Lens for 2835 to 3030 LED

This is Single  LED lens for Street Light Lens suitable for 2835 to 3030LED(1Watts).  We can provide IES File and datasheet on request. Drawing of the lens can be downloaded from below link. Please feel free to send any query about lens, we will get back to you with details accordingly.

S.No LED Manufacturer LED Model FWTM Angle (°) Spread FWTM Angle (°) Throw Cd/lm Efficiency (%) Datasheet
1OSRAMDuris E 2835168910.6588Datasheet
2OSRAMDuris S51691130.6588Datasheet
3LUMILEDLUXEON 28351651190.5087Datasheet
4SAMSUNGLM282B1671180.4887Datasheet

Drawing
