In Stock

OPLLS0114C

Lens Part Number : OPLLS0114C

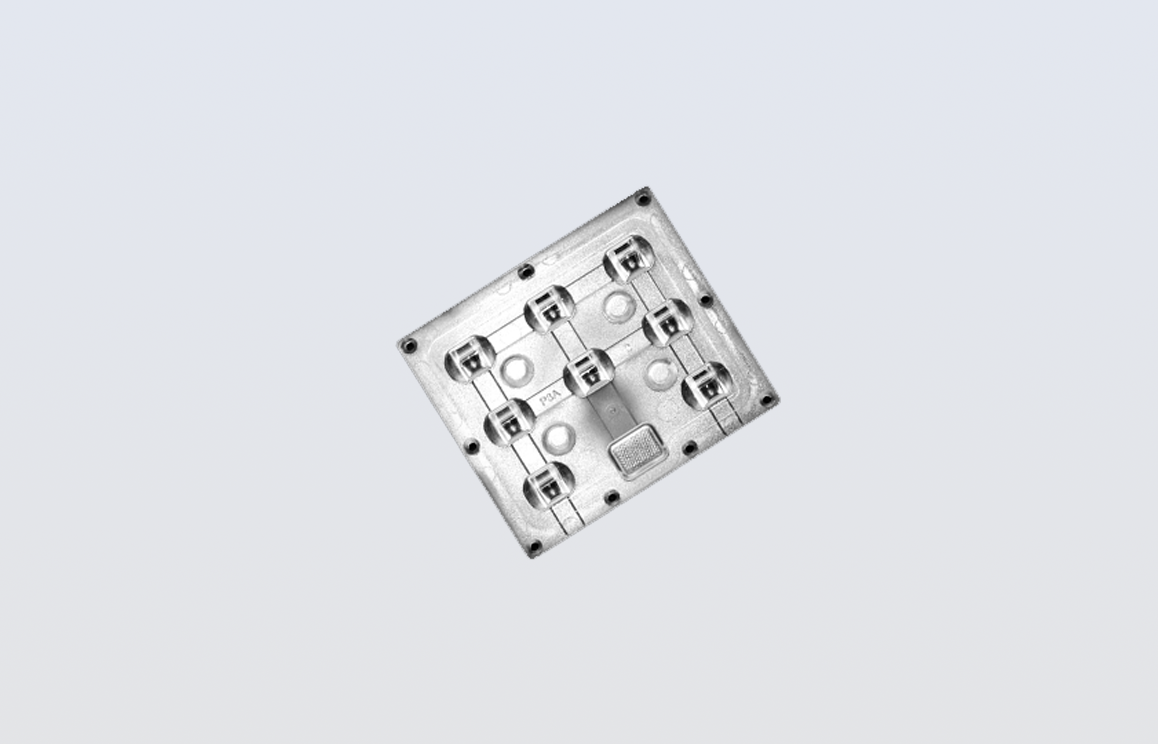

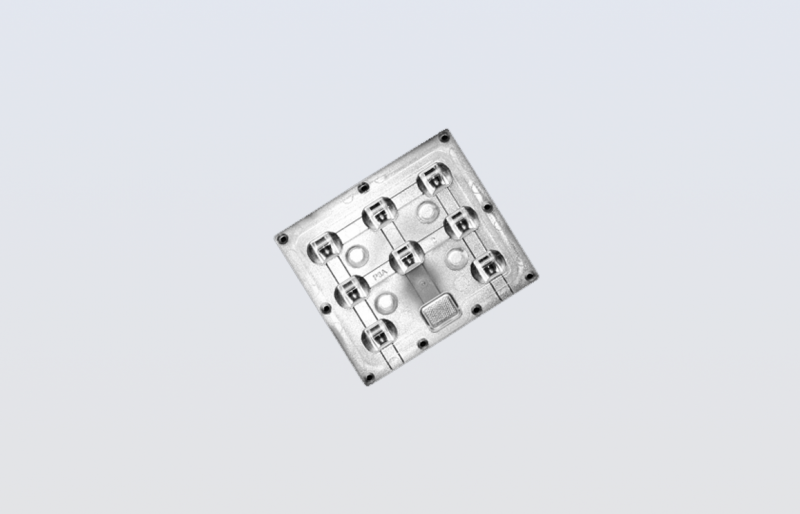

8in1 Street Light Lens (IP&IK)

Material : Polycarbonate
Lens Operating Temperature : -40°C to +120°C
Lens Dimensions (L x W x H) : 109mm X 97mm X 8.7 mm
LED compatibility : Package 5050
IP & IK Rating: IP-65 & IK-08
Application : Street Lighting
Gasket Material: Silicon

Distribution Type: Type I

Compare

Description

8in1 Cluster LED Lens for Street Light (IP Lens for 5050 LED Package)

This Lens is mainly used for LED Street Lighting Application.
LED Lens is in 8 in 1 cluster, it can be easy to mount.
This Lens is IP Lens and suitable for 5050 LED Package.
We manufacture this lens and are capable of supplying any quantity as per customer requirement.
Below mentioned table will give a fair information on properties of LED Street Light Lens with different LED.

Datasheet can be downloaded from the table for the respective LED.

LED Manufacturer

LED Model

FWTM Angle (°) Spread

FWTM Angle (°) Throw

Cd/lm

Efficiency (%)

Datasheet

CREE

Xlamp MHB-B

155

67

0.75

89

Download

BRIDGELUX

5050

147

62

0.75

89

Download

OSRAM

Duris S8

151

60

0.8

89

Download

SAMSUNG

LH508A

147

68

0.8

89

Download

LUMILED

LUXEON 5050

149

65

0.8

89

Download
