OPLLS0105C

Part Number : OPLLS0105C

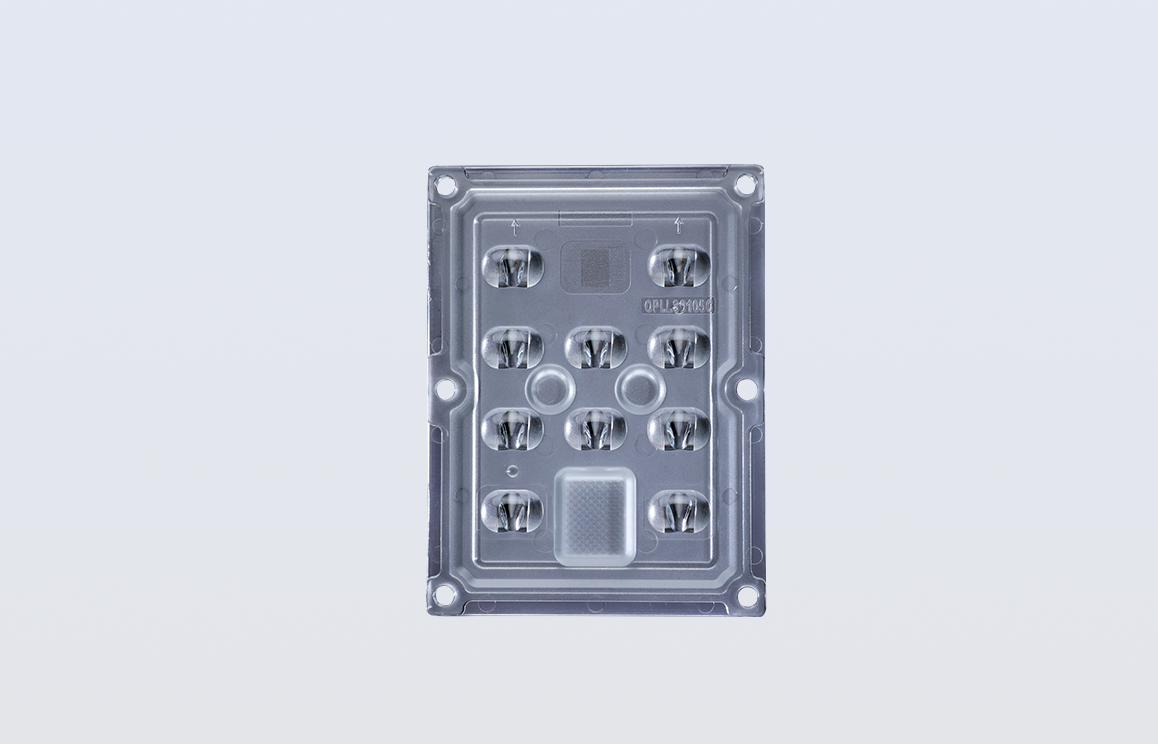

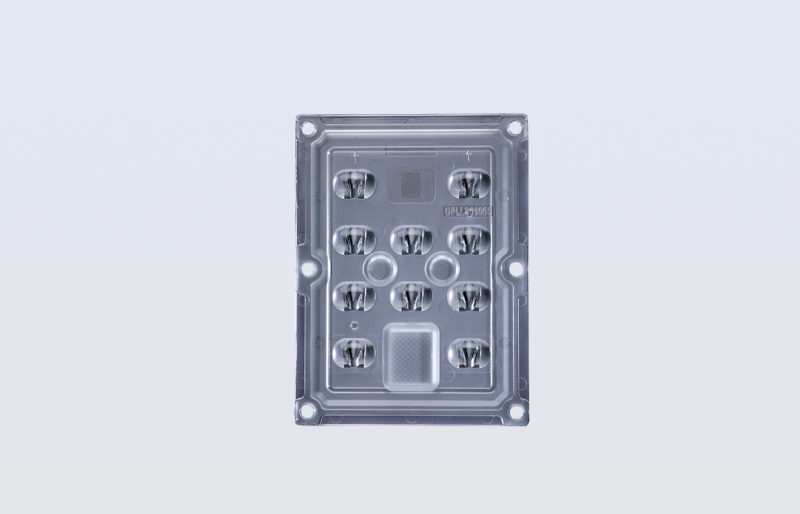

10in1 Street Light Lens (IP&IK)

Material : Polycarbonate
Lens Operating Temperature : -40°C to +120°C
Lens Dimensions (L x W x H) : 80mm X 60mm X 7.6mm
LED compatibility : Package 3030 / 3535 / 3737 / 2835
IP & IK Rating: IP-65 & IK-08
Application : Street Lighting
Gasket Material: Silicon

Distribution Type: Type II

Compare

Description

10in1 Cluster LED Lens for Street Light

This is 10in1 Street Light Lens suitable for 3030, 3535, 3737 & 2835 LED. Distribution type can be achieved by adjusting Street Light mounting angle. We can provide IES File of Lens with respective LED on request. Datasheet & Drawing of the lens can be downloaded from below table.

 Please feel free to send any query about lens, we will get back to you with details accordingly.

LED Manufacturer

LED Model

FWTM Angle (°) Spread

FWTM Angle (°) Throw

Cd/lm

Efficiency (%)

Datasheet

Samsung

LH351B

154

106

0.51

89

Download

CREE

XP-E

154

103

0.52

89

Download

CREE

XP-E2

152

104

0.51

89

Download

CREE

XP-G2

157

109

0.49

89

Download

CREE

XT-E

162

114

0.55

89

Download

EDISON

3535 FX

154

102

0.56

89

Download

LG INNOTEK

H35C1

160

114

0.51

89

Download

SAMSUNG

LH351C

151

104

0.54

89

Download

OSRAM

Oslon Square Gen3

162

108

0.53

89

Download
