OPLLS0093C

Part Number : OPLLS0093C

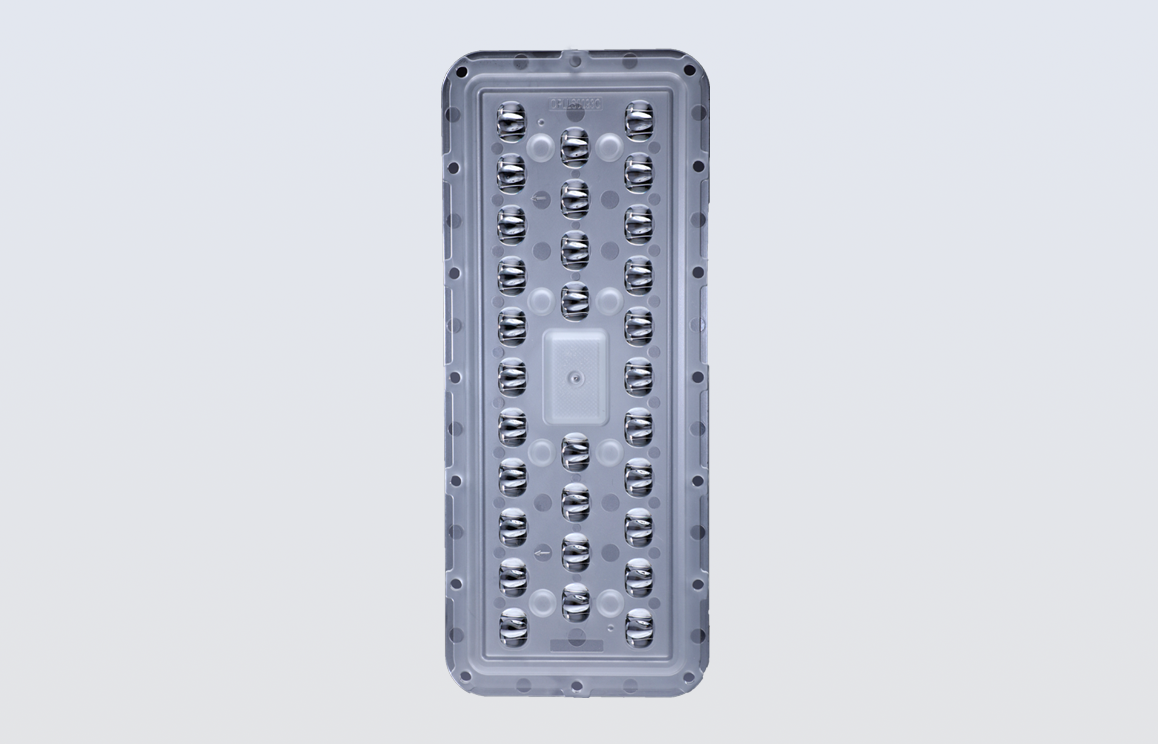

30in1 Street Light Lens (IP&IK)

Material : Polycarbonate
Lens Operating Temperature : -40°C to +120°C
Lens Dimensions (L x W x H) : 204mm X 84mm X 9.7mm
LED compatibility : Package 3030 / 3535 / 3737 / 2835
IP & IK Rating: IP-65 & IK-08
Application : Street Lighting
Gasket Material: Silicon

Distribution Type: Type I

Compare

Description

28in1 Cluster LED Lens for Street Light

This is 30in1 Street Light Lens suitable for 3030, 3535, 3737 & 2835 LED. Distribution Type can be achieved by adjusting Street Light mounting angle. We can provide IES File of Lens with respective LED on request.

Datasheet & Drawing of the lens can be downloaded from below table. Please feel free to send any query about lens, we will get back to you with details accordingly.

LED Manufacturer

LED Model

FWTM Angle (°) Spread

FWTM Angle (°) Throw

Cd/lm

Efficiency (%)

Datasheet

SEOUL

SZ5-M2

82.77

139.28

0.88

89.5

Download

CREE

Xlamp XP-G3

78.08

138.98

0.7

88.5

Download

OSRAM

OSLON Square Zen3

77.46

142.56

0.86

89

Download

SAMSUNG

LH351B

85.52

139.81

0.8

89

Download

OSRAM

Duris P8

78.08

138.98

0.86

89

Download

CREE

Xlamp XT-E

92.68

147.67

0.86

88

Download
