In Stock

OPLLS0076C

Part Number : OPLLS0076C

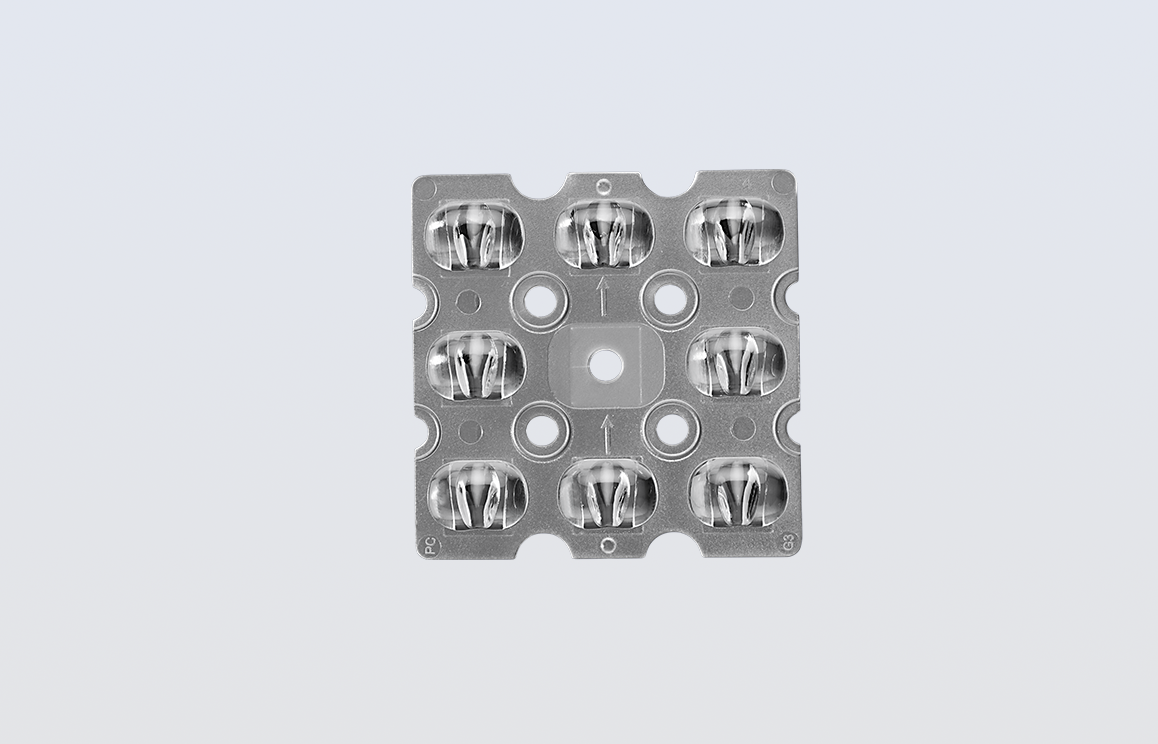

8in1 Street Light Lens

Material : Polycarbonate
Lens Operating Temperature : -40°C to +120°C
Lens Dimensions (L x W x H) : 49.50 x 49.50 x 6.6mm
LED Compatibility : Package 3030 / 3535 / 3737 / 2835
Application : Street Lighting

Distribution Type: Type I, Type II and Type III

Compare

Description

Roadway Distribution Details:



Angle of Inclination for Mounting IES Roadway Classification
0° – 8° Type-I
9° – 23° Type-II
24° – 33° Type-III

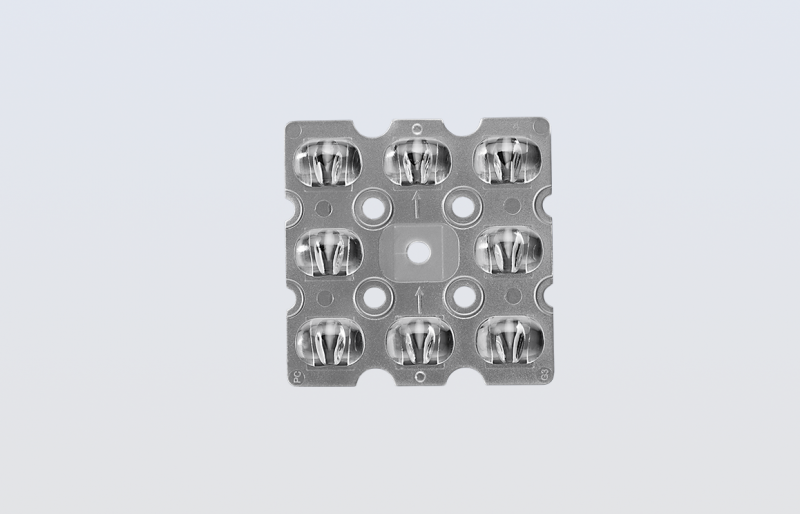

8in1 Cluster LED Lens for Street Light

This Lens is mainly used for LED Street Light to distribute light in proper direction and angle.
LED Lens is in 8 in 1 cluster pattern, it can be easy to mount. The material used for making this 8 in 1 cluster LED streetlight lens is poly carbonate and has high operating temperature tolerance. It has an efficiency of upto 90% depending on LED.
We manufacture these lenses and are capable of supplying any quantity as per customer requirement.

You can review its optical and physical properties on below specification table. You can also download datasheet of the lens with respective LED as per your requirement.

LED Manufacturer

LED Model

FWHM Angle (°) Spread

FWTM Angle (°) Throw

Cd/lm

Efficiency (%)

Datasheet

SAMSUNG

LH351B

146

102

0.49

89

Download

OSRAM

Duris P8

90.6

136.6

0.97

89

Download

CREE

XP-G3

109

148.5

0.7

88.7

Download

LG INNOTEK

H35C4

103

143.4

0.85

89

Download

LG INNOTEK

H35C1

151

103

0.52

90

Download

CREE

X-TE_HVW

102

145.2

0.86

88.5

Download

CREE

XP-G2

151

101

0.49

90

Download

CREE

XP-E2

146

100

0.51

90

Download

CREE

XT-E

144

106

0.51

90

Download

EDISON

Federal 3535 FX

146

102

0.55

89

Download

OSRAM

Oslon Square Gen3 (GW CSSRM2)

95.6

140.2

1.02

89

Download

CREE

XP-E

136

91

0.53

90

Download
