In Stock

OPLLS0074C

Part Number : OPLLS0074C

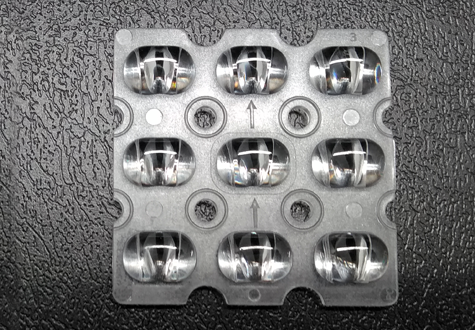

9in1 Street Light Lens

Material : Polycarbonate
Lens Operating Temperature : -40°C to +120°C
Lens Dimensions (L x W x H) : 49.50 x 49.50 x 6.6mm
LED Compatibility : Package 3030 / 3535 / 3737 / 2835
Application : Street Lighting

Distribution Type: Type I, Type II and Type III

Compare

Description

Roadway Distribution Details:




Angle of Inclination for MountingIES Roadway Classification
0° – 8°Type-I
9° – 23°Type-II
24° – 33°Type-III

9in1 Cluster LED Lens for Street Light

This Lens is mainly used for LED Street Light to give light in proper direction and angle.

LED Lens is in 9 in 1 cluster pattern, it can be easy to mount. This 9 in 1 LED streetlight lens is manufactured using poly-carbonate (PC) raw material. It has upto 90% efficiency depending on LED and operating temperature can go upto 120°C for this streetlight lens.
We manufacture these lenses and are capable of supplying any quantity as per customer requirement.  You can review its optical and physical properties on below specification table. You can also download datasheet of the lens with respective LED as per your requirement.

LED Manufacturer

LED Model

FWHM Angle (°) Spread x Throw

FWTM Angle (°) Spread x Throw

Cd/lm

Efficiency (%)

Datasheet

SEOUL

Z5M0

137 x 53

148 x 103

0.66

89.5

Download

SEOUL

Z5M1

134 x 53

146 x 98

0.66

89.5

Download

SEOUL

Z5M2

135 x 55

146 x 100

0.68

89.5

Download

CREE

XP-E3

138 x 55

144 x 98

0.51

90

Download

CREE

XP-G

141 x 48

15 x 104

0.64

89.6

Download

CREE

XP-G2

139 x 50

148 x 107

0.52

90

Download

CREE

XP-G3

142 x 60

152 x 112

0.54

89.6

Download

CREE

XP-E

136 x 48

137 x 96

0.49

90

Download

CREE

XP-E

139 x 49

151 x 105

0.53

90

Download

SAMSUNG

LH315B

133 x 49

145 x 95

0.52

89

Download

SAMSUNG

LH351C

132 x 49

144 x 94

0.72

89

Download

OSRAM

Duris E 2835

132 x 52

141 x 98

0.78

89.5

Download

OSRAM

Duris P8

134 x 43

147 x 95

0.66

89.4

Download

OSRAM

Duris S5

129 x 48

139 x 98

0.76

89.4

Download

EDISON

FEDERAL 3535 FX

136 x 51

148 x 101

0.56

89

Download

LG

INNOTEK H35C1

141 x 46

149 x 107

0.51

90

Download

LUMILED

LUXEON 2835

130 x 53

140 x 98

0.84

89.5

Download

NICHIA

NVSW319B

143 x 48

158 x 109

0.56

89.5

Download

OSLON

SQUARE GEN3

139 x 51

148 x 103

0.64

89.5

Download
