In Stock

OPLLS0066

Part Number : OPLLS0066

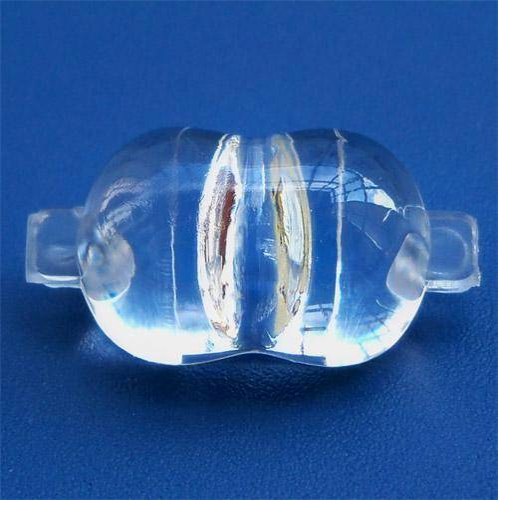

Single Lens for Street Lighting

Material : Polycarbonate
Lens Operating Temperature : -40°C to +120°C
Lens Dimensions (L x W x H) : 18.1 x 10.4 x 7.6mm
LED compatibility : Package 3030 / 3535 / 3737 / 2835
Application : Street Lighting
Distribution Type: Type I, Type II and Type III

Compare

Description

Roadway Distribution Details:




Angle of Inclination for MountingIES Roadway Classification
0° – 3°Type-I
4° – 18°Type-II
19° – 26°Type-III

Single Lens for Street Lighting

This Lens is mainly used for LED Street Light to distribute light in proper direction and angle.

LED Lens is for single LED and can be used for all major LED Packages. The raw material used for manufacturing this product is poly-carbonate which has a high operating temperature tolerance of 120°C. The single light LED lens have an efficiency of upto 90% depending on your LED.
We manufacture this lens and are capable of supplying any quantity as per customer requirement.

You can review its optical and physical properties on below specification table. You can also download datasheet of the lens with respective LED as per your requirement.

LED Manufacturer

LED Model

FWHM Angle (°) Spread

FWTM Angle (°) Throw

Cd/lm

Efficiency (%)

Datasheet

CREE

XT-E

100.5

141

0.97

89.5

Download

OSRAM

Duris S5

102

145

0.77

89.6

Download

SAMSUNG

LH351B

103

142

0.96

89.2

Download

SEOUL

Z5-M1

103.5

142

0.91

89.3

Download

NICHIA

NF2W757GR

103.8

147.6

0.76

89.5

Download

NICHIA

NVSW219B

107.8

142

1.08

89.2

Download

CREE

XB-D

102.7

143.3

0.86

89.6

Download

CREE

XP-E

100.5

141

0.94

89.5

Download

LUMILEDS

LUXEON TX

107

145.3

0.97

89.3

Download

OSRAM

Oslon Square

97

145

0.76

89.5

Download

OSRAM

Oslon SSL 150

103

140

1.17

89.5

Download

OSRAM

Oslon SSL 80

82

140.7

0.77

89.6

Download
