OPLLS0042

Part Number : OPLLS0042

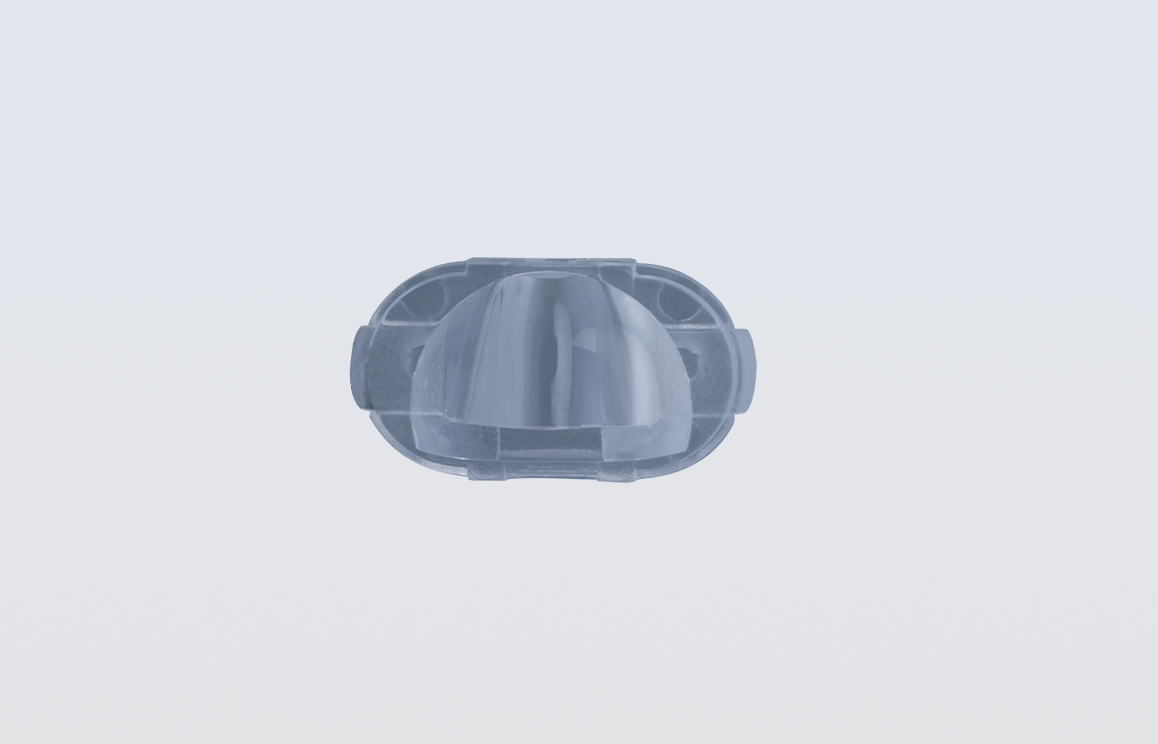

Single Lens for Street Lighting

Material: Polycarbonate
Application: LED Lens for  Street Light
Lens Operating Temperature: -40 to +120°C
Lens Dimensions (L x W x H) : 14mm x 11mm x 5mm
LED Compatibility: Package 3030 / 3535 / 2835
Distribution Type: Type II and Type III

Compare

Description

Roadway Distribution Details:




Angle of Inclination for MountingIES Roadway Classification
0° – 11°Type-II
12° – 21°Type-III

Single Lens for Street Lighting

This Lens is mainly used for LED Street Light to get light in proper direction and angle.

We manufacture this lens and capable of supplying any quantity as per customer requirement.

Below mentioned table will give a fair information on properties of LED Street Light Lens with different LED.

Datasheet also can be downloaded accordingly from the table.

LED Manufacturer

LED Model

FWHM Angle (°) Spread x Throw

FWTM Angle (°) Spread x Throw

Cd/lm

Efficiency (%)

Datasheet

CREE

XP-E

153 x 65

163 x 126

0.52

90

Download

CREE

XP-E2

155 x 59

161 x 125

0.46

90.2

Download

CREE

XP-G

156 x 72

161 x 136

0.38

90.3

Download

CREE

XP-G2

156 x 72

161 x 136

0.38

90.3

Download

CREE

XP-G3

160 x 83

166 x 145

0.32

90.6

Download

CREE

XT-E

160 x 79

164 x 142

0.32

90.5

Download

NICHIA

NVSW319B

159 x 80

172 x 139

0.32

90.5

Download

OSLON

DURIS E 2835

148 x 94

155 x 124

0.52

90.3

Download

OSRAM

DURIS P8

146 x 64

161 x 131

0.38

90.4

Download

OSRAM

DURIS S5

149 x 53

154 x 120

0.54

90.3

Download

EDISON

FEDERAL 3535 FX

149 x 54

154 x 126

0.44

90.1

Datasheet

LG INNOTEK

H35C1

156 x 76

162 x 136

0.36

90.4

Download

SAMSUNG

H351B

145 x 65

154 x 119

0.52

90

Download

SAMSUNG

LH351C

144 x 63

152 x 119

0.39

90.4

Download

LUMILED

LUXEON 2835

142 x 51

152 x 120

0.46

90.1

Download

OSLON

SQUARE GEN3

155 x 66

165 x 133

0.53

90

Download

SEOUL

Z5M0

154 x 65

161 x 132

0.40

90.2

Download

SEOUL

Z5M1

149 x 64

156 x 125

0.40

90.2

Download

SEOUL

Z5M2

149 x 64

159 x 124

0.41

90.3

Download
