OPLLS0038

Part Number : OPLLS0038

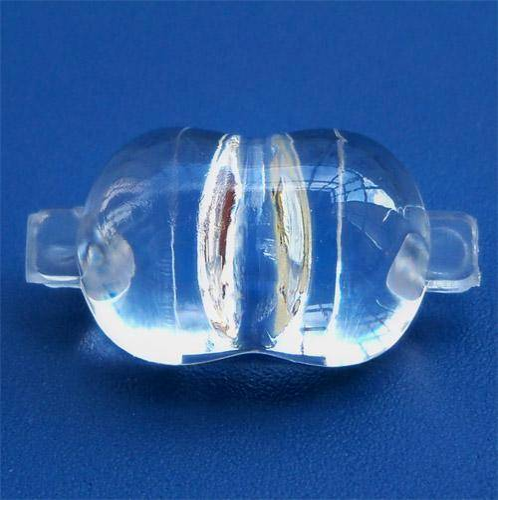

Single Lens for Street Lighting

Material                                            : Polycarbonate
Lens Operating Temperature : -40°C to +120°C
Lens Dimensions (L x W x H) : 18.1 x 10.4 x 7.6mm
LED compatibility                        : Package 3030 / 3535 / 2835 / 3737
Application                                      : Street Lighting

Distribution Type: Type I, Type II and Type III

Compare

Description

Roadway Distribution Details:



Angle of Inclination for Mounting IES Roadway Classification
0° – 3° Type-I
4° – 18° Type-II
19° – 26° Type-III

Single Lens for Street Lighting

This Lens is mainly used for LED Street Light to distribute light in proper direction and angle.

LED Lens is for single LED and can be used for all major LED Packages. The raw material used for manufacturing this product is poly-carbonate which has a high operating temperature tolerance upto 120°C. The single LED lens have an efficiency upto 90% depending on LED.
We manufacture this lens and are capable of supplying any quantity as per customer requirement.

You can review its optical and physical properties on below specification table. You can also download datasheet of the lens with respective LED as per your requirement.

LED Manufacturer

LED Model

FWHM Angle (°) Spread x Throw

FWTM Angle (°) Spread x Throw

Cd/lm

Efficiency (%)

Datasheet

CREE

XP-E2

135 x 55

142 x 96

0.72

89.7

Download

CREE

XP-E

135 x 52

143 x 100

0.68

89.6

Download

CREE

XP-G2

137 x 48

147 x 105

0.70

89.7

Download

CREE

XP-G3

140 x 54

152 x 111

0.56

90.2

Download

EDISON

FEDERAL 3535 FX

137 x 46

146 x 104

0.62

89.9

Download

CREE

XT-E

139 x 49

150 x 108

0.60

90.1

Download

LG INNOTEK

H35C1

137 x 50

145 x 102

0.62

89.9

Download

SAMSUNG

LH351C

131 x 50

141 x 97

0.74

89.7

Download

SAMSUNG

LH351B

132 x 52

140 x 95

0.66

89.7

Download

SEOUL

Z5M0

137 x 52

145 x 104

0.70

89.7

Download

OSRAM

OSLON SQUARE

137 x 51

149 x 104

0.66

89.7

Download

SEOUL

Z5M1

133 x 55

142 x 95

0.68

89.7

Download

SEOUL

Z5M2

133 x 54

147 x 100

0.72

89.7

Download

OSRAM

DURIS E 2835

131 x 52

141 x 98

0.80

89.6

Download

OSRAM

DURIS S5

129 x 50

138 x 97

0.78

89.5

Download

OSRAM

DURIS P8

133 x 50

146 x 95

0.70

89.5

Download

LUMILED

LUXEON 2835

133 x 56

140 x 99

0.76

89.6

Download

NICHIA

NVSW319B

142 x 50

157 x 104

0.62

89.9

Download
