In Stock

OPLLF0100

Lens Part Number : OPLLF0100

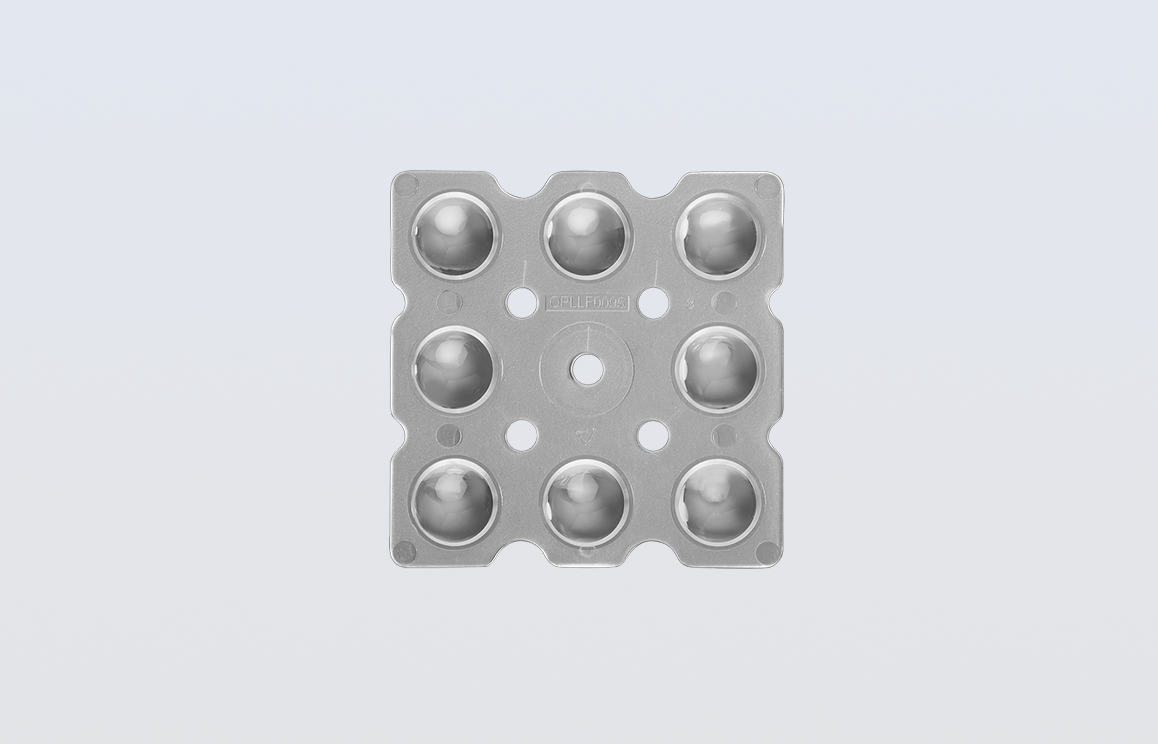

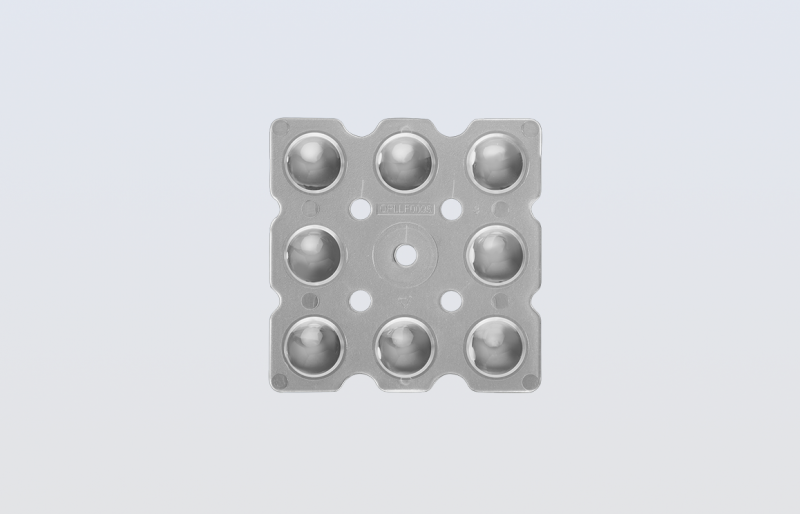

8 in 1 Bay / Flood Light Lens
Material                                              : Polycarbonate
Lens Operating Temperature    : -40°C to +120°C
Lens Dimensions (L x W x H)    : 49.5 x 49.5 x 7.0mm
LED Compatibility                         : Package 2835 / 3030 / 3535 / 3737 / 5050
Application                                       : Bay Lighting / Flood Lighting
FWHM Angle                                   : 80° to 100°
Compare

Description

8in1 LED Lens for Flood Light for 2835/5050/3737/3535/3030 LED

This is 8in1 Flood Light Lens suitable for 2835/5050/3737/3535/3030 LED. Lens Pitch is 16.6 mm. Beam angle of the lens is between 90 deg. to 100 deg. depending on LED Model, We can provide IES File and datasheet on request.

Please feel free to send any query about lens, we will get back to you with details accordingly.

LED Manufacturer

LED Model

FWHM Angle (°)

FWTM Angle (°)

Cd/lm

Efficiency (%)

Datasheet

BRIDGELUX

5050

85.38

119.01

0.54

89

Download

CREE

MHB-B

84.73

117.8

0.54

89

Download

CREE

XP-G3

99.68

126.33

0.44

90

Download

CREE

XP-L2

96.18

123.19

0.46

90

Download

CREE

XT-E

93.75

126.5

0.46

90

Download

OSRAM

Duris P8

79.11

119.01

0.58

89

Download

OSRAM

DURIS S5

90.27

119.36

0.5

89

Download

OSRAM

Duris S8

86.95

99.53

0.54

90

Download

EDISON

3535 FX

82.94

120.58

0.56

89

Download

SAMSUNG

LH351B

90.13

113.96

0.54

90

Download

SAMSUNG

LH508A

88.17

119.97

0.52

89

Download

LUMILED

LUXEON 5050

80.51

117.8

0.54

90

Download

LUMILED

LUXEON Q

98.62

127.55

0.42

89

Download

LUMILED

LUXEON T

94.31

122.5

0.48

89

Download

LUMILED

LUXEON Tx

95.66

124.41

0.46

89

Download

OSRAM

Oslon Square Gen3

85.03

123.37

0.52

89

Download

SEOUL

Z5M0

94.44

124.16

0.46

90

Download

SEOUL

Z5M1

90.26

119.05

0.5

90

Download

SEOUL

Z5M2

92.27

119.87

0.5

90

Download
