OPLLF0095

Lens Part Number : OPLLF0095

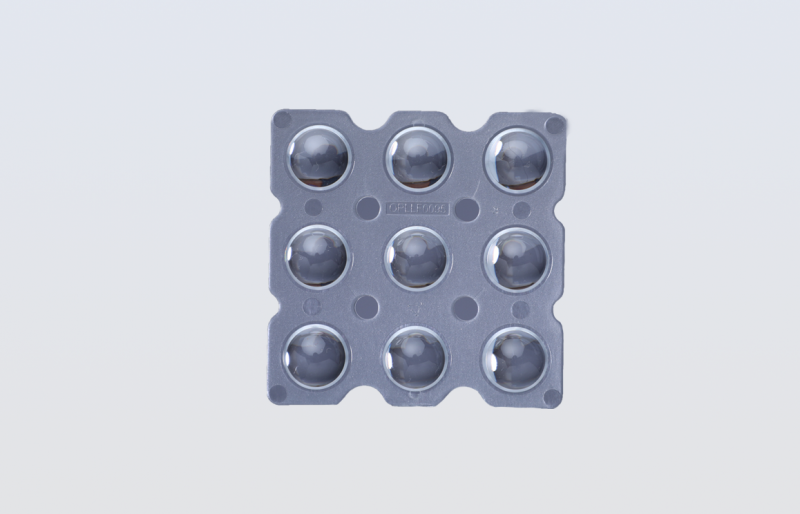

9in1 High Bay / Flood Light Lens
Material                                                 : Polycarbonate
Lens Operating Temperature       : -40°C to +120°C
Lens Dimensions (L x W x H)       : 49.5 x 49.5 x 7.0mm
LED Compatibility                            : Package 2835 / 3030 / 3535 / 3737 / 5050
Application                                          : Bay Lighting / Flood Lighting
FWHM Angle                                      : 50° to 70°
Compare

Description

9in1 LED Lens for Flood Light for 5050/3737/3535/3030 LED This is 9in1 Flood Light Lens suitable for 5050/3737/3535/3030 LED. Lens Pitch is 16.6 mm. Beam angle of the lens is between 60 deg. to 70 deg. depending on LED Model, We can provide IES File and datasheet on request. Please feel free to send any query about lens, we will get back to you with details accordingly.

LED Manufacturer

LED Model

FWTM Angle (°) Spread

FWTM Angle (°) Throw

Cd/lm

Efficiency (%)

Datasheet

SEOUL

Z5M1

60.72

100.06


89

Download

SEOUL

Z5M0

62.45

104.16


88

Download

SAMSUNG

LH508A

64.49

98.02


88

Download

LUMILED

LUXEON Tx

62.66

104.98


87

Download

LUMILED

LUXEON T

63.58

104.15


89

Download

LUMILED

LUXEON Q

65.41

108.35


87

Download

LUMILED

LUXEON 5050

59.19

97.62


88

Download

EDISON

EDISON 3535 Fx

74.31

106.3


89

Download

CREE

XP-L2

74.31

106.3


89

Download

SAMSUNG

LH351C

172

114


90

Download

CREE

MHB-B

63.17

97.62


87

Download

BRIDGELUX

SMD 5050 Gen2

64.4

98.95


87

Download

OSRAM

Duris S8

61.23

97.51


88

Download

OSRAM

Duris S5

54.28

97.92


89

Download

SEOUL

Z5M2

62.04

99.76


88

Download

OSRAM

DURIS P8

50.39

94.14

89

Download

CREE

XT-E

65.62

108.25

89

Download

SAMSUNG

LH351B

58.67

93.84

94

Download

CREE

XPG3

71.66

110.69

89

Download

OSRAM

Oslon Square Gen3

54.58

102.83

89

Download
