In Stock

OPLLF0094

Lens Part Number : OPLLF0094

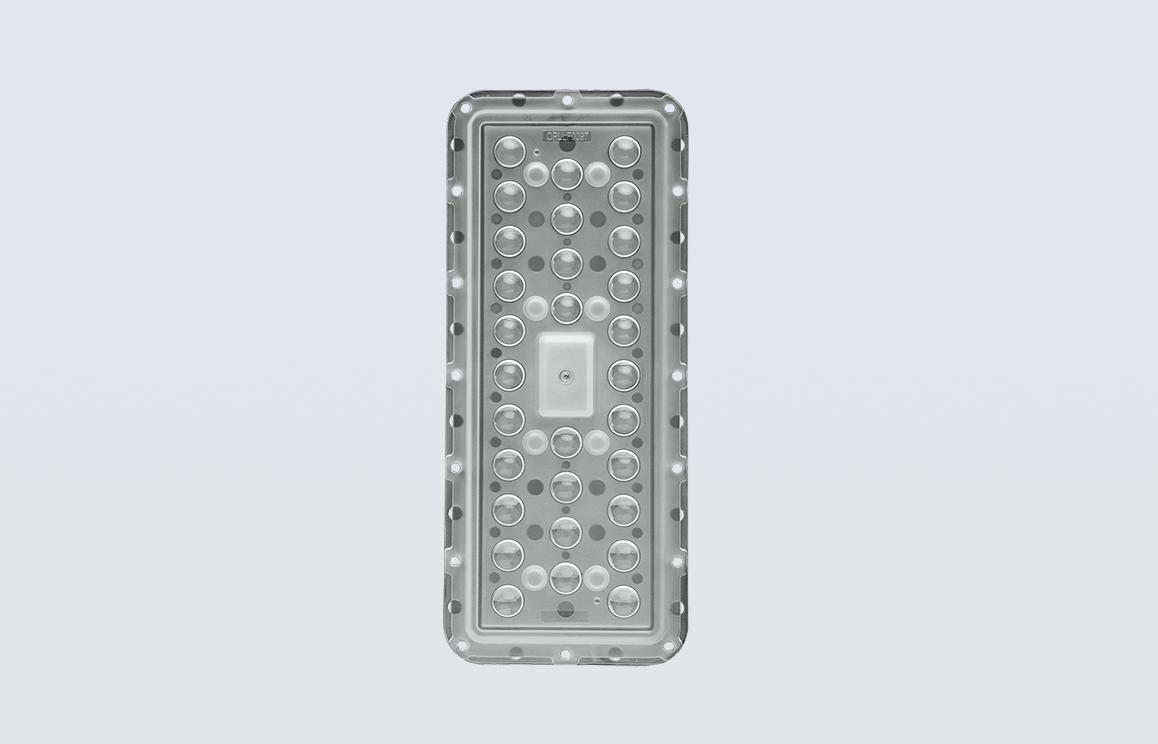

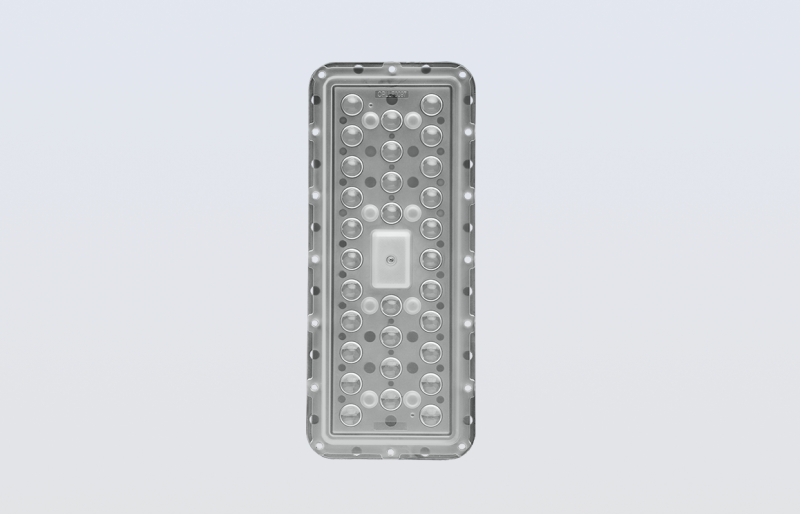

30in1 Bay / Flood Light Lens-IP&IK
Material                                                : Polycarbonate
Lens Operating Temperature      : -40°C to +120°C
Lens Dimensions (L x W x H)      : 204 x 84 x 9.7mm
LED Compatibility                           : Package 2835 / 3030 / 3535 / 3737
Application                                         : Bay Lighting / Flood Lighting
FWHM Angle                                     : 40° to 60°
Compare

Description

30in1 LED Lens for Flood Light for 3737/3535/3030 LED This is 30in1 Flood Light Lens suitable for 3737/3535/3030 LED. Beam angle of the lens is between 45 deg. to 50 deg. depending on LED Model.   We can provide IES File and datasheet on request. Please feel free to send any query about lens, we will get back to you with details accordingly.

LED Manufacturer

LED Model

FWHM Angle (°)

FWTM Angle (°)

Cd/lm

Efficiency (%)

Datasheet

CREE

XP-G3

57.1

94.61

0.9

88

Download

CREE

XP-G2

49.12

86.51

1.1

88

Download

CREE

XP-E2

43.63

85.32

1.4

88

Download

CREE

XP-E

41.87

81.22

1.4

89

Download

CREE

XP-L2

64.39

86.22

0.8

88

Download

CREE

XT-E

55.26

90.16

1

88

Download

OSRAM

Duris P8

39.27

77.61

1.6

88

Download

OSRAM

Duris S5

35.96

76.77

1.6

88

Download

EDISON

FEDERAL 3535 FX

42.51

79.63

1.45

88

Download

LG INNOTEK

H35C1

52.79

86.48

1.1

88

Download

SAMSUNG

LH351B

44.89

78.33

1.3

89

Download

SAMSUNG

LH351C

45.17

78.46

1.3

89

Download

LUMILED

LUXEON Q

48.74

86.95

1.15

88

Download

LUMILED

LUXEON T

48.61

86.24

1.1

88

Download

LUMILED

LUXEON Tx

47.27

78.09

1.15

88

Download

NICHIA

NVSW319B

64.13

90.87

0.85

88

Download

OSRAM

OSLON SQUARE

41.39

81.07

1.3

88

Download

SEOUL

Z5M0

47.65

86.91

1.15

88

Download

SEOUL

Z5M1

45.03

78.28

1.25

89

Download

SEOUL

Z5M2

46.61

86.56

1.2

89

Download
