In Stock

OPLLF0089

Lens Part Number : OPLLF0089

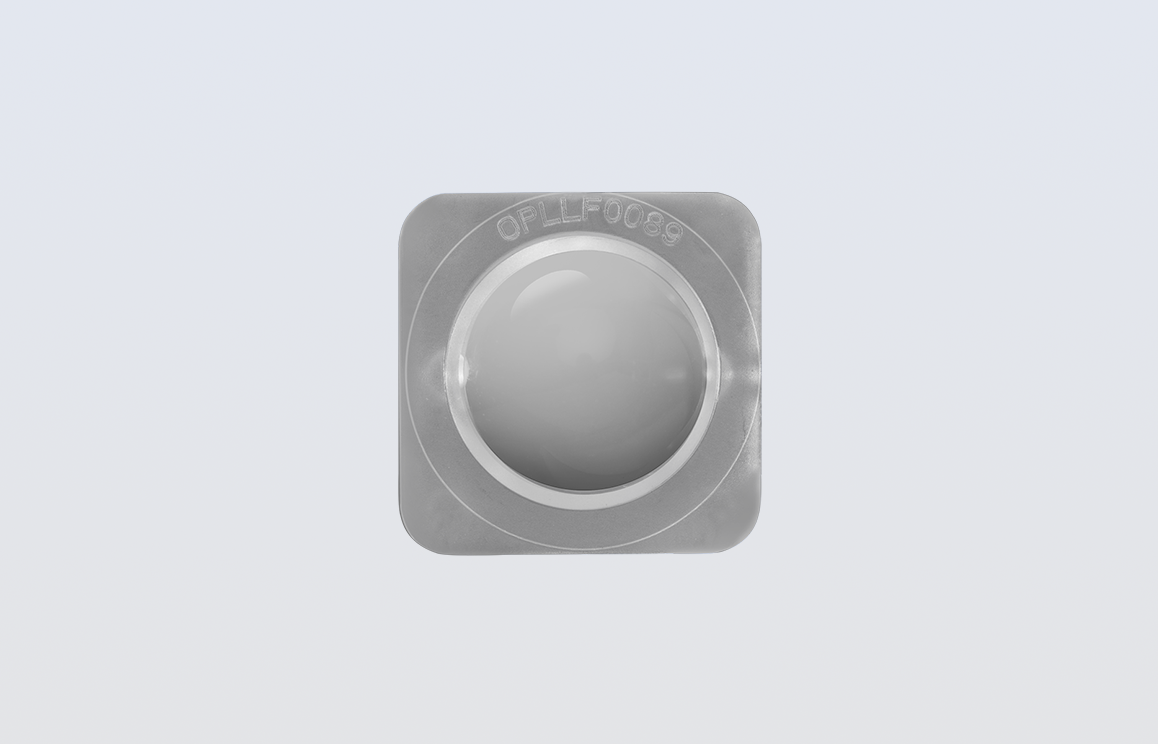

Single Lens for High Bay / Flood Light
Material                                          : Polycarbonate
Application                                    : LED Lens for  Flood Light and Bay Light
Lens Operating Temperature : -40°C to +120°C
Lens Dimensions                         : 14mm X 14mm & Height 7mm
LED compatibility                       : Package 2835 / 3030 / 3535 / 3737 / 5050
FWHM Angle                                : 30° to 60°
Compare

Description

60° Flood Light Lens 5050 LED Package This Lens is mainly used for LED Flood Light and Bay Light to get light in proper direction and angle. LED Lens is giving light beam angle between 60 degree to 70 degree This Flood Light Lens is suitable for up to 5050 LED Package We manufacture this lens and capable of supplying any quantity as per customer requirement. Below mentioned table will give a fair information on properties of LED Flood Light Lens / LED Bay Light Lens with different LED. Datasheet also can be downloaded accordingly from the table.

LED Manufacturer

LED Model

FWHM Angle (°)

FWTM Angle (°)

Cd/lm

Efficiency (%)

Datasheet

OSRAM

DURIS S8

46.7

 96.9

1.1

89.3

Download

CREE

MHB-B

50.7

96.3

1.0

89.3

Download

Bridgelux

5050

50.4

98.5

0.98

89.3

Download

SAMSUNG

LH508A

49.8

 97.7

1.05

89.4

Download

LUMILED

LUXEON 5050

51.2

 99.3

0.98

89.4

Download

CREE

XP-G3

41.4

104.7

1.1

89.6

Download

LUMILED

LUXEON T

34

94.6

1.4

89.5

Download

LUMILED

LUXEON Tx

31.8

93.5

1.4

89.6

Download

LUMILED

LUXEON Q

 32.1

101.5

1.25

89.4

Download

CREE

XP-L2

49.6

101

0.98

89.6

Download

CREE

XT-E

38.9

98.4

1.2

89.6

Download

OSRAM

DURIS P8

28.4

 75.9

1.9

89.3

Download

EDISON

EDISON 3535 Fx

22.9

78.8

2.05

89.4

Download

OSRAM

Oslon Square Gen3

 31.4

86.6

1.5

89.6

Download

SAMSUNG

LH351B

32.6

 88.8

1.5

89.4

Download

SEOUL

Z5M0

34.4

93.1

1.35

89.5

Download

SEOUL

Z5M1

32.9

 88.2

1.55

89.5

Download

SEOUL

Z5M2

34.1

89.8

1.45

89.5

Download

OSRAM

OSLON SSL120

24.05

74.23

2.1

89.1

Download
