OPLLF0086

Lens Part Number : OPLLF0086

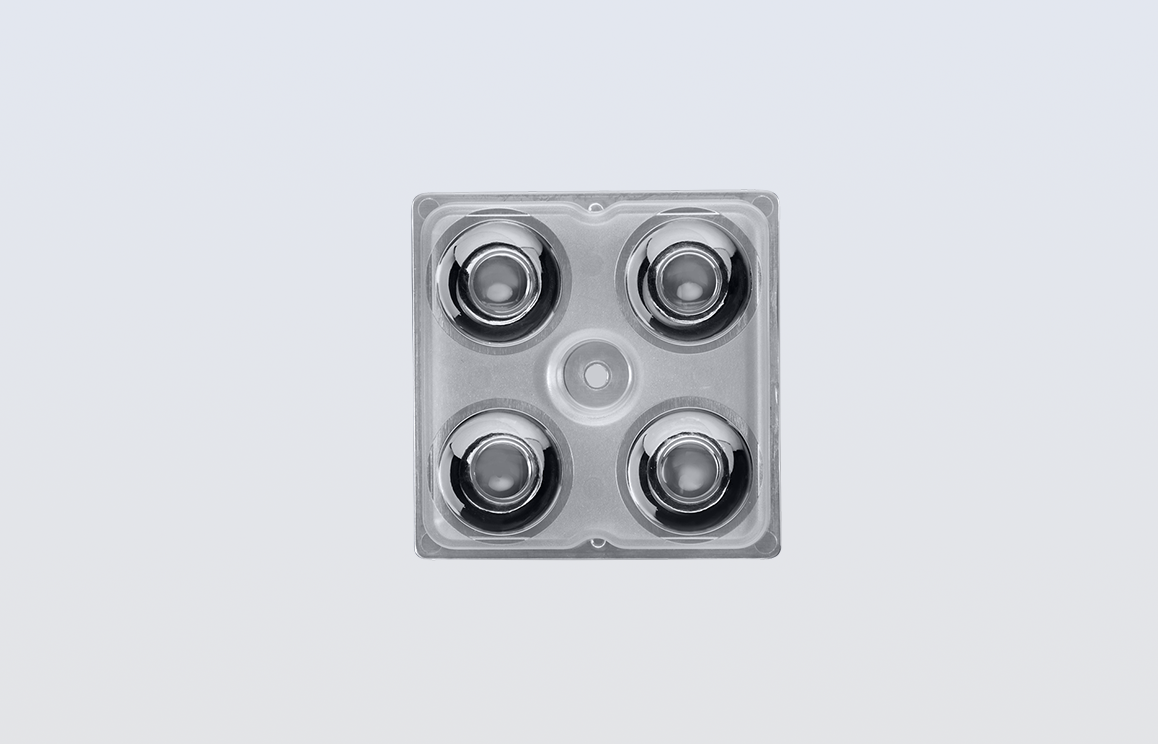

4in1 High Bay / Flood Light Lens
Material                                           : Polycarbonate
Lens Operating Temperature : -40°C to +120°C
Lens Dimensions (L x W x H) : 50 x 50 x 9.5mm
LED compatibility                       : Package 2835 / 3030 / 3535 / 3737 / 5050
Application                                    : Bay Lighting / Flood Lighting
FWHM Angle                                : 27° to 35°
Compare

Description

4in1 LED Lens for Bay Light / Flood Light for 5050/3737/3535/3030 LED This is 4in1 Bay Light / Flood Light Lens suitable for 5050/3737/3535/3030 LED including CREE MHB-A, CREE MHB-B, Duris S8, Duris P8, CREE 3535 Series, Osram 3030 Series etc. Lens Pitch is 25.4 mm. Beam angle of the lens is between 35 deg. to 40 deg. depending on LED Model. We can provide IES File and datasheet on request. Please feel free to send any query about lens, we will get back to you with details accordingly.

LED Manufacturer

LED Model

FWTM Angle (°) Spread

FWTM Angle (°) Throw

Cd/lm

Efficiency (%)

Datasheet

LUMILED

LUXEON Tx

28.22

47.53

3.6

86

Download

LUMILED

LUXEON T

27.8

47.22

3.6

85

Download

LUMILED

LUXEON Q

27.19

47.22

3.7

85

Download

LUMILED

LUXEON 5050

36.28

57.86

2.4

81

Download

EDISON

Federal 3535FX

28.52

46.51

3.6

84.65

Download

CREE

XLamp XT-E

27.6

50.8

3.5

87

Download

CREE

XLamp XP-L2

33.63

56.63

2.5

86.62

Download

CREE

XLamp XP-G3

30.15

52.64

3.07

86.64

Download

CREE

XLamp MHB-B

36.9

58.78

2.5

86.9

Download

BRIDGELUX

SMD 5050 Gen2

35.57

56.73

2.3

86.94

Download

SEOUL

SZ5-M0

28.31

48.14

3.5

87

Download

SEOUL

SZ5-M2

28.93

48.24

3.6

87

Download

SEOUL

SZ5-M1

28.31

48.14

3.6

87

Download

OSRAM

Oslon Square Gen3

28.41

47.52

2.4

87

Download

SAMSUNG

LH508A

36.18

59.7

2.3

87.5

Download

SAMSUNG

LH351B

29.03

48.86

3.8

87

Download

OSRAM

Duris S8

34.55

55.09

2.55

87

Download

OSRAM

Duris P8

34.75

55.19

2.4

87

Download

CREE

MHB-B

35

63

2.03

89

Download

OSRAM

Duris S8

37

57

2.2

88.5

Download
