OPLLC0132

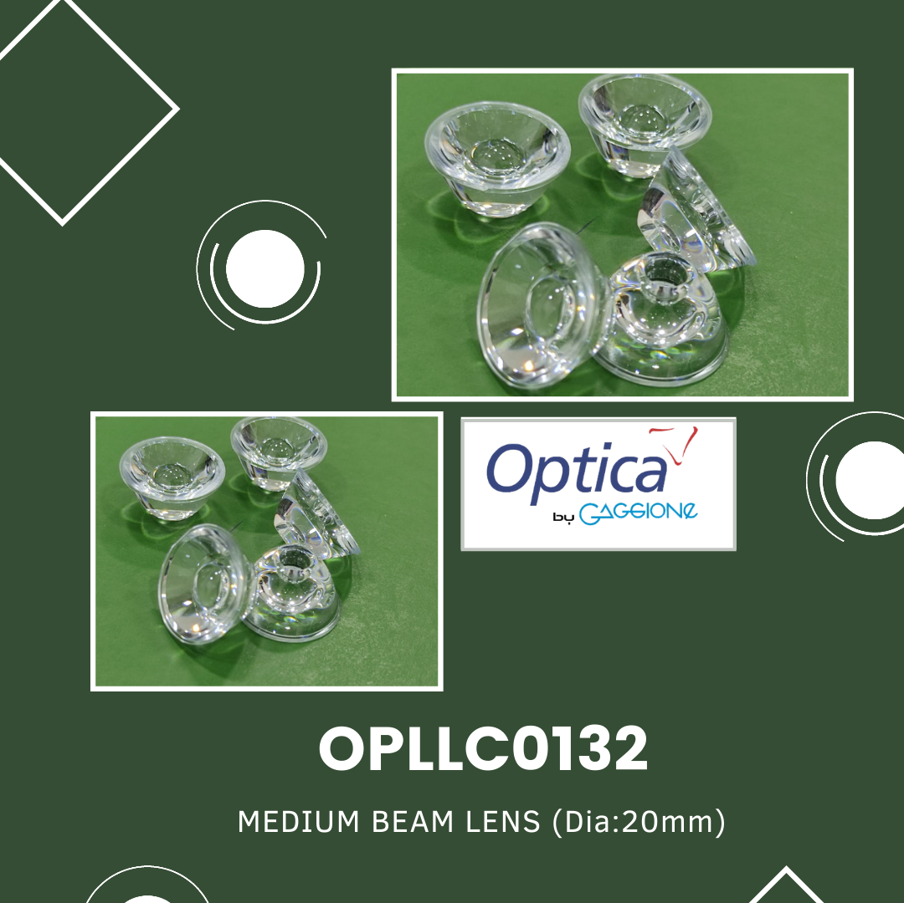

Lens Part Number: OPLLC0132
Medium Narrow Beam Single Lens

Material  : Polycarbonate
Application : Lens for LED Down Light LED
Compatibility Package: 2835 / 3030 / 3535
Lens Operating Temperature :  -40°C to +120°C
Diameter: 19.50mm
Height : 10mm
FWHM Angle: 10° to 16°

Compare

Description

This Lens is mainly used for LED downlights to get light in proper direction and angle. This LED downlights lens is clear and giving light beam angle between 10 degree to 15 degree.This Lens for LED Down Light is  suitable for 3030 and 3535 LED. We manufacture this lens and capable of supplying any quantity as per customer requirement. Below mentioned table will give a fair information on properties of this LED Lens. Datasheet also can be downloaded accordingly from the table.

LED Manufacturer

LED Model

FWHM Angle (°)

FWTM Angle (°)

Cd/lm

Efficiency (%)

Datasheet

CREE

XLamp XP-E

12.71

22.13

11.5

88

Datasheet

CREE

XLamp XP-E2

12.88

22.13

11

89

Datasheet

CREE

XLamp XP-G2

14.28

25.79

10

88

Datasheet

CREE

XLamp XP-G3

16.02

31.12

7.5

89

Datasheet

CREE

Xlamp XT-E

15.32

29.27

8

89

Datasheet

OSRAM

Duris 2835

10.44

20.74

18

89

Datasheet

EDISON FEDERAL

3535 FX

12.17

23.7

12

89

Datasheet

OSRAM

Duris P8

12.19

23.87

12.5

89

Datasheet

LG INNOTEK

H35C1

14.1

27.36

9.5

89

Datasheet

SAMSUNG

LH351B

13.93

25.79

9.5

89

Datasheet

SAMSUNG

LH351C

14.11

26.84

9

89

Datasheet

NICHIA

NVSW319B

16.19

32.24

7.5

89

Datasheet

OSRAM

OSLON SQUARE

12.71

24.92

11.5

89

Datasheet

OSRAM

OSLON SSL80

9.93

20.56

13

88.3

Datasheet

SEOUL

Z5M0

13.06

25.96

11

89

Datasheet

SEOUL

Z5M1

12.51

24.4

11.5

89

Datasheet

SEOUL

Z5M2

12.51

24.4

11.5

89

Datasheet

SAMSUNG

LM282B

14.09

27.36

10

90

Datasheet

LUMILED

LUXEON 2835

12.19

23.87

13

89

Datasheet
