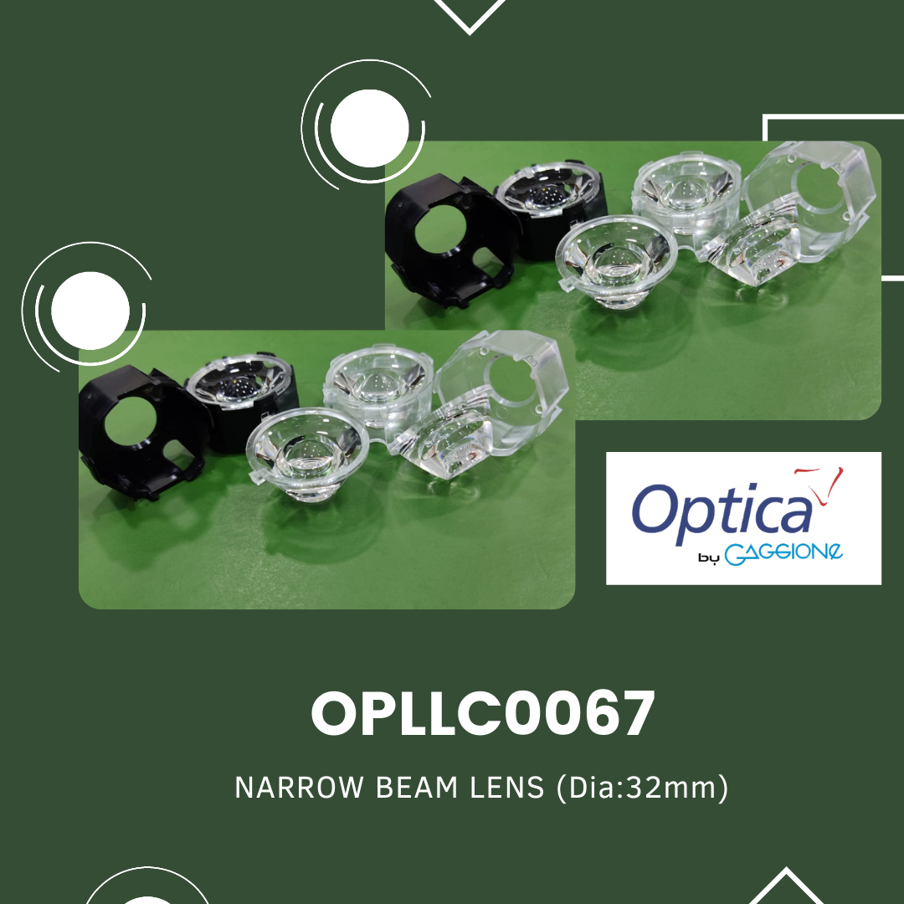

OPLLC0067

Lens Part Number: OPLLC0067

Lens Application: Narrow Beam Lighting (Surgical Lighting / OT Lighting, Stage Lighting, Search Lighting etc.)
Lens Material: PMMA
Holder Material: Polycarbonate
Holder ColourClear & Black
LED Compatibility Package: 2835 / 3030 / 3535/ 5050
Lens Operating Temperature: -40°C to +70°C
Diameter: 32mm, Height : 21mm
FWHM Angle: 5° to 10°
Manufactured By: Optica

Compare

Description

This Lens is mainly used for LED Surgical Light / Medical Light / Narrow Beam Light for Spot Lighting Angle. This single lens is comes with holder suitable for 3-5 watt LED and Beam Angle of this LED Lens is between 5 degree to 8 degree depend on LED type. These lenses are used for LED Surgical Light, LED Stage Light, LED Spot Light, and other Medical Application LED Lights. We manufacture this lens and capable of supplying any quantity as per customer requirement. Below mentioned table will give a fair information on properties of LED Spot Light Lens with different LED. Datasheet & Drawing also can be downloaded accordingly from the table.

LED Manufacturer

LED Model

FWHM Angle (°) Spread

FWTM Angle (°) Throw

Cd/lm

Efficiency (%)

Datasheet

CREE

XLAMP XB-D

 8.9

16.8

32

90.1

Download

CREE

XLAMP XHP50.2

19.51

31.67

7.5

91.8

Download

CREE

XLAMP XP-E

10.5

18.8

26

90.5

Download

CREE

XLAMP XP-E2

10.9

19.1

24

90.6

Download

CREE

XLAMP XP-G2

 10.7

 21.6

20.5

90.9

Download

CREE

XLAMP XPL

12.72

23.17

16

91.1

Download

CREE

XLAMP XQE-HI

9.3

 15.4

36

89.8

Download

CREE

XLAMP XT-E

12.1

23

17

90.2

Download

OSRAM

DURIS S5

7.5

 15.4

40

89.7

Download

OSRAM

DURIS S8

 16.5

 24.3

12

91.8

Download

EDISON

FEDERAL 3535 FX

8.8

 16.1

32

90

Download

LG INNOTEK

H35C1

 11.1

21.5

20

90.9

Download

SAMSUNG

LH351B

9.8

18.9

26

90.6

Download

LUMINUS

SST 20W

7.5

 14.3

42

89.4

Download

NICHIA

NF2W757GR

 10.9

 23.9

17

91.2

Download

NICHIA

NVSW219B

12.4

24.5

15.5

91.2

Download

OSRAM

OSLON BLACK FLAT

4.8

9

125

81.6

Download

OSRAM

OSLON SQUARE GEN3

10

 19.3

24.5

90.6

Download

OSRAM

OSLON SSL80

7.8

 14.5

42

89.2

Download

OSRAM

OSLON SSL150

8.5

 18.5

30

90.1

Download

SEOUL

Z5M1

8.5

 14.7

39

89.8

Download
