OPLLC0024

Lens Part Number : OPLLC0024

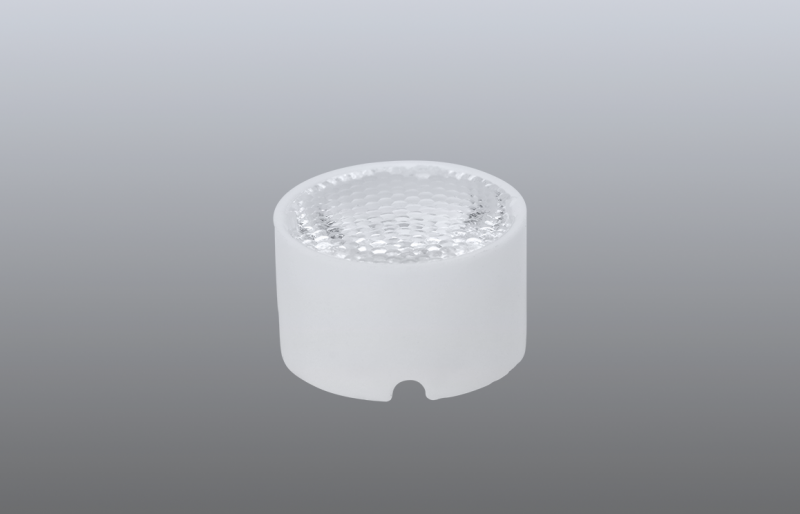

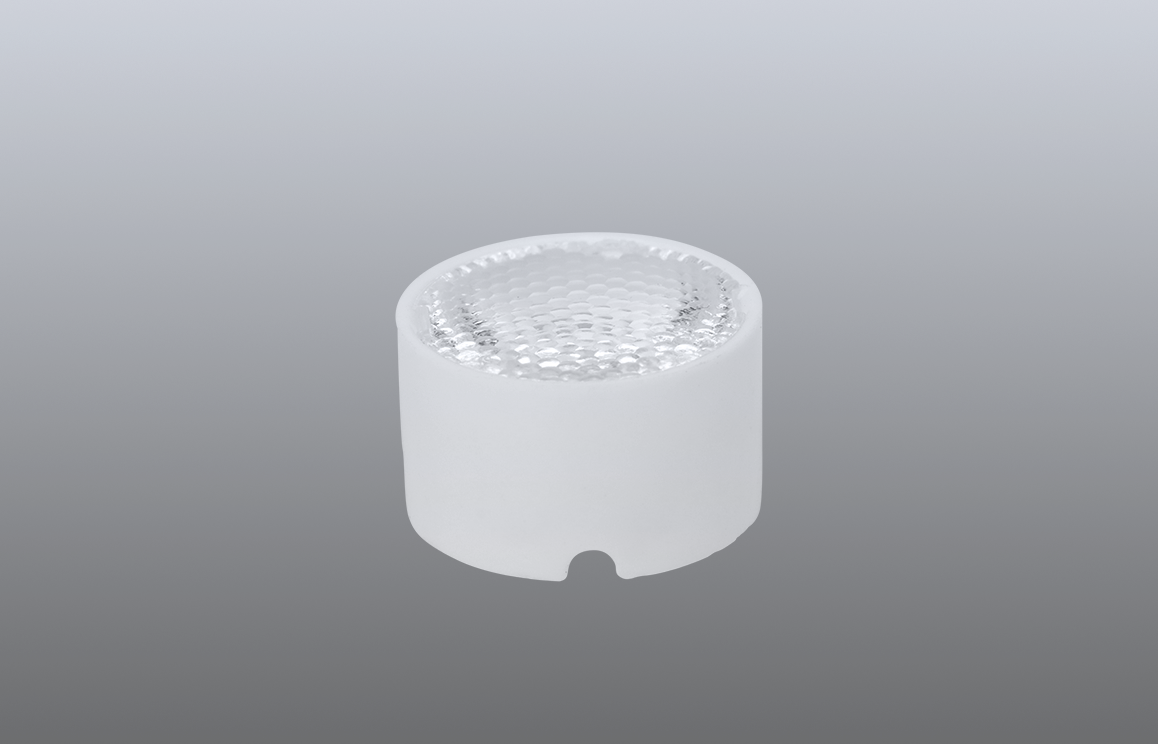

Single Lens for High Bay / Flood Light

Material                                          : PMMA
Application                                    : LED Lens for  Flood Light and Bay Light
Lens Operating Temperature : -40°C to +70°C
Lens Dimensions                         : Dia 14.76mm & Height 8.45mm
Holder Dimensions                    : Dia 16.20mm & Height 9.80mm
LED compatibility                       : Package 3030

FWHM Angle                                    : 22° to 24°

Compare

Description

LED Lens with Holder for 3030 LED Package This Lens is mainly used for LED Flood Light and Bay Light to get light in proper direction and angle. LED Lens is Diffused and giving light beam angle between 20 degree to 25 degree This Flood Light Lens is assembled with holder and suitable for 3030 LED Package We manufacture this lens and capable of supplying any quantity as per customer requirement. Below mentioned table will give a fair information on properties of LED Flood Light Lens / LED Bay Light Lens with different LED. Datasheet also can be downloaded accordingly from the table.

LED Manufacturer

LED Model

FWTM Angle (°) Spread

FWTM Angle (°) Throw

Cd/lm

Efficiency (%)

Datasheet

OSRAM

Duris S5

23

44.5

4.62

90

Download

OSRAM

Oslon Square

23.5

43.5

4.78

90

Download

OSRAM

Oslon SSL 80

24

42

5.22

90

Download

OSRAM

Oslon SSL 150

22

40

5.47

90

Download
