Part Number : OPLLC0053

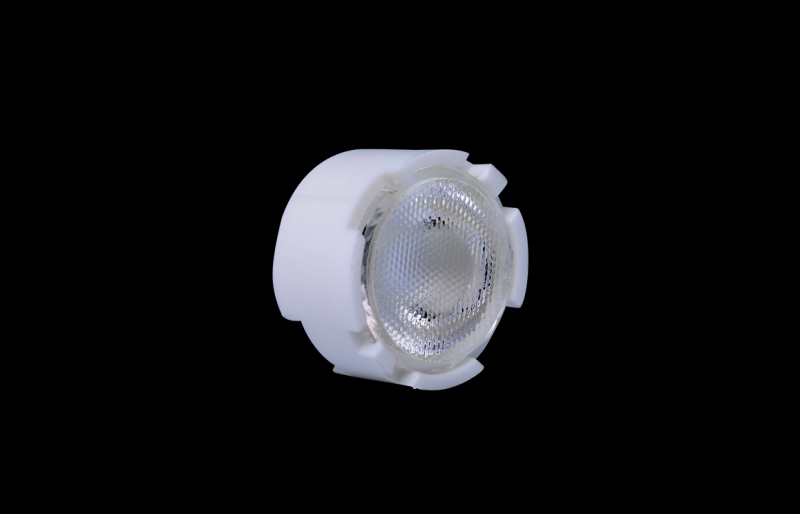

60° Flood Light Lens With Holder For 3535 LED (10 Mm)
Material                                             : PMMA
Application                                       : LED Lens for  Flood Light and Bay Light
Lens Operating Temperature    : -40°C to +70°C
Lens Dimensions                            : Dia 11.70mm & Height 6.50mm
Holder Dimensions                       : Dia 13.53mm & Height 7.20mm
LED compatibility                          : Package size of 3.5 x 3.5mm
Category:

LED Lens with Holder for 3535 LED Package


This Lens is mainly used for LED Flood Light and Bay Light to get light in proper direction and angle.


LED Lens is giving light beam angle between 50 degree to 60 degree.


This Flood Light Lens is assembled with holder and suitable for 3535 LED Package
We manufacture this lens and capable of supplying any quantity as per customer requirement.


Below mentioned table will give a fair information on properties of LED Flood Light Lens / LED Bay Light Lens with different LED.


Datasheet also can be downloaded accordingly from the table.
