Part Number: OPLLS0120C

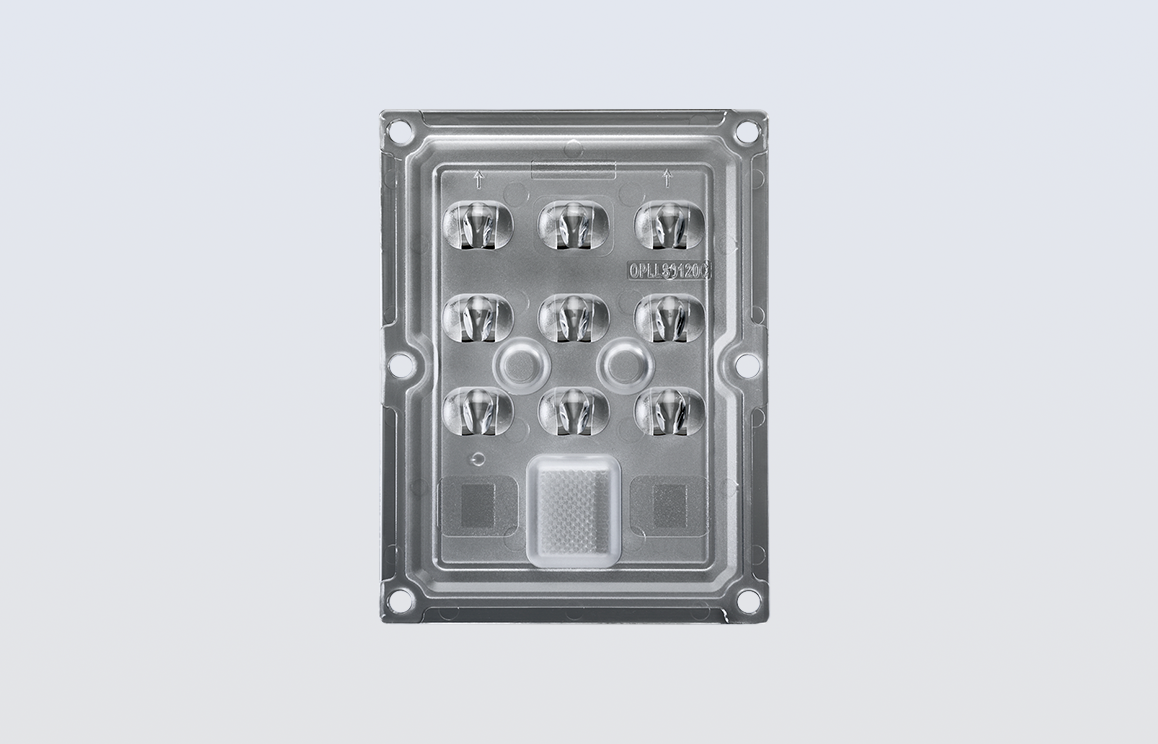

9in1 Street Light Lens (IP&IK) – 3030/3535/3737 LED
Material : Polycarbonate
Lens Operating Temperature : -40°C to +120°C
Lens Dimensions (L x W x H) : 80 x 60 x 7.6mm
LED compatibility : Package size up to 3.7 x 3.7mm
IP & IK Rating:  IP-66 & IK-08
Application : Street Lighting
Gasket Material: Silicon
Category:

This is 9in1 Street Light Lens suitable for 3030, 3535 & 3737 LED. Distribution can be achieved by adjusting street light mounting. We can provide IES File and datasheet on request. Drawing of the lens can be downloaded from below link. Please feel free to send any query about lens, we will get back to you with details accordingly.

S.No LED Manufacturer LED Model FWTM Angle (°) Spread FWTM Angle (°) Throw Cd/lm Efficiency (%) Datasheet
1SamsungLH351B99.25153.530.6288% Datasheet
2OsramOslon Square Gen3 98.26157.050.6488.5% Datasheet
3CreeXP-G3 112.66162.280.5288% Datasheet
4SeoulZ5M298.18152.40.6689% Datasheet
5CREEXP-E1511060.5190Datasheet
6CREEXP-E21541040.5290Datasheet
7CREEXP-G21591080.5089Datasheet
8CREEXT-E1641110.5189Datasheet
9EDISON3535 FX151990.4989Datasheet
10LG INNOTEKH35C11621100.5089Datasheet
11SAMSUNGLH351C1521000.5189Datasheet

Drawing
