Part Number : OPLLS0101C

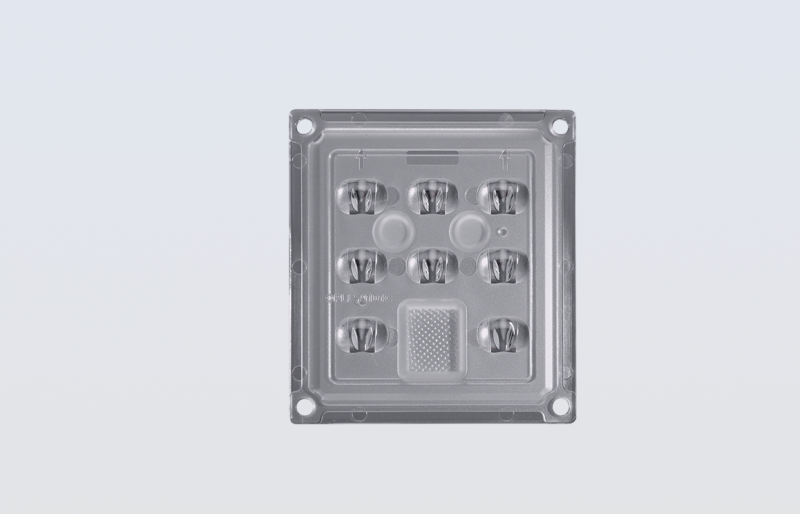

8in1 Street Light Lens (IP&IK) – 3030/3535/3737 LED

Material : Polycarbonate
Lens Operating Temperature : -40°C to +120°C
Lens Dimensions (L x W x H) : 66 x 60 x 7.6mm
LED compatibility : Package size up to 3.7 x 3.7mm
IP & IK Rating: IP-66 & IK-08
Application : Street Lighting
Gasket Material: Silicon

Category:

8in1 Cluster LED Lens for Street Light


This is 8in1 Street Light Lens suitable for 3030, 3535 & 3737 LED. Distribution can be achieved by adjusting street light mounting.

We can provide IES File and datasheet on request. Drawing of the lens can be downloaded from below link. Please feel free to send any query about lens, we will get back to you with details accordingly.

S.NoLED ManufacturerLED ModelFWTM Angle (°) SpreadFWTM Angle (°) ThrowCd/lmEfficiency (%)Datasheet
1CREEXP-E1511070.5189Datasheet
2CREEXP-E21541010.5289Datasheet
3CREEXP-G21571090.5189Datasheet
4CREEXT-E1641140.5489Datasheet
5EDISON3535 FX1541020.5589Datasheet
6LG INNOTEKH35C11601110.5289Datasheet
7SAMSUNGLH351B1511040.4989Datasheet
8SAMSUNGLH351C1511040.4989Datasheet
9OSRAMOslon Square Gen3 1571100.5289Datasheet

Drawing
